Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: httpd_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#apache
Type: oval-def:ObjectType
Containing Schema: apache-definitions-schema.xsd
Abstract
Documentation:
The httpd_object element is used by a httpd test to define the different httpd binary installed on a system. There is actually only one object relating to this and it is the collection of all httpd binaries. Therefore, there are no child entities defined. Any OVAL Test written to check version will reference the same version_object which is basically an empty object element. A tool that implements the httpd_test and collects the httpd_object must know how to find all the httpd binaries on the system and verify that they are in fact httpd binaries.

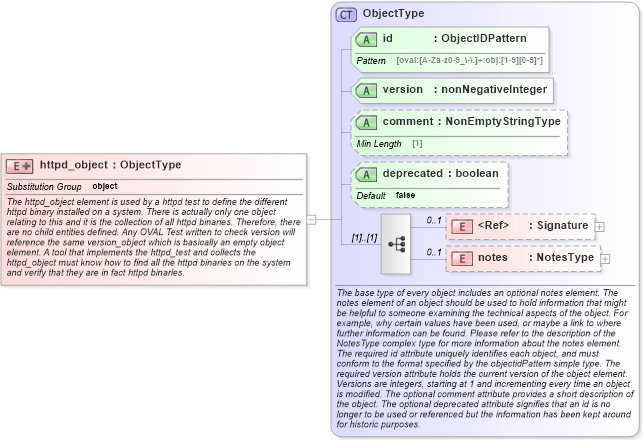

Collapse XSD Schema Diagram:
Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of httpd_object in schema apache-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="httpd_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The httpd_object element is used by a httpd test to define the different httpd binary installed on a system. There is actually only one object relating to this and it is the collection of all httpd binaries. Therefore, there are no child entities defined. Any OVAL Test written to check version will reference the same version_object which is basically an empty object element. A tool that implements the httpd_test and collects the httpd_object must know how to find all the httpd binaries on the system and verify that they are in fact httpd binaries.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType" />
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
