Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: id
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:EntityItemIntType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The id element specifies a particular object under the metabase key. If the nillable attribute is set to true, then the item being represented is the higher level metabase key. Using xsi:nil here will result in a status of 'does not exist' for the other entities associated with this item since these entities are not associated with a key by itself.

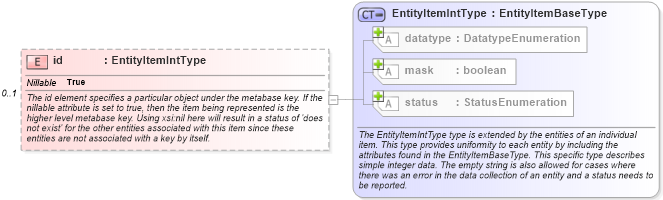

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemIntType in schema oval-system-characteristics-schema_xsdXSD Diagram of id in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="id" type="oval-sc:EntityItemIntType" minOccurs="0" maxOccurs="1" nillable="true">
    <xsd:annotation>
        <xsd:documentation>The id element specifies a particular object under the metabase key. If the nillable attribute is set to true, then the item being represented is the higher level metabase key. Using xsi:nil here will result in a status of 'does not exist' for the other entities associated with this item since these entities are not associated with a key by itself.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="metabaseitemid" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-sc:metabase_item/win-sc:id">
                    <sch:assert test="@datatype='int'">item <sch:value-of select="../@id" /> - datatype attribute for the id entity of a metabase_item should be 'int'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
