Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: inetd_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#unix
Type: oval-def:ObjectType
Containing Schema: unix-definitions-schema.xsd
Abstract
Documentation:
The inetd_object element is used by an inetd test to define the specific protocol-service to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema. An inetd object consists of a protocol entity and a service_name entity that identifies the specific service to be tested.

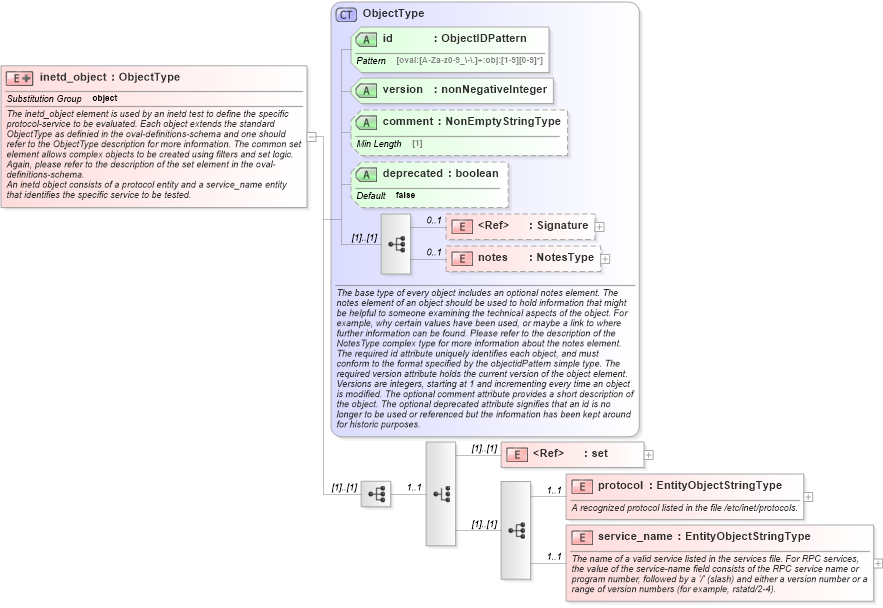

Collapse XSD Schema Diagram:
Drilldown into service_name in schema unix-definitions-schema_xsd Drilldown into protocol in schema unix-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of inetd_object in schema unix-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="inetd_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The inetd_object element is used by an inetd test to define the specific protocol-service to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
        <xsd:documentation>An inetd object consists of a protocol entity and a service_name entity that identifies the specific service to be tested.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="1">
                        <xsd:element ref="oval-def:set" />
                        <xsd:sequence>
                            <xsd:element name="protocol" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>A recognized protocol listed in the file /etc/inet/protocols.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="inetdobjprotocol" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="unix-def:inetd_object/unix-def:protocol">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the protocol entity of an inetd_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="service_name" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>The name of a valid service listed in the services file. For RPC services, the value of the service-name field consists of the RPC service name or program number, followed by a '/' (slash) and either a version number or a range of version numbers (for example, rstatd/2-4).</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="inetdobjservice_name" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="unix-def:inetd_object/unix-def:service_name">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the service_name entity of an inetd_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set (1) (1)
protocol unix-def:protocol 1 1
service_name unix-def:service_name 1 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
