Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: key
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:EntityItemStringType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
This element specifies a registry key on the machine from which the SACL was retrieved. Note that the hive portion of the string should not be inclueded, as this data should be found under the hive element.

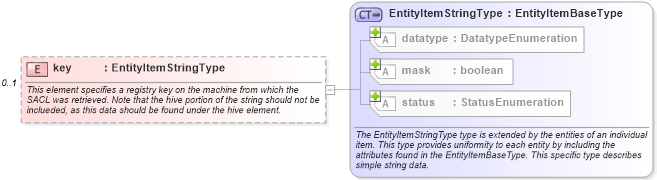

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of key in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="key" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>This element specifies a registry key on the machine from which the SACL was retrieved. Note that the hive portion of the string should not be inclueded, as this data should be found under the hive element.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="rapitemkey" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-sc:regkeyauditedpermissions_item/win-sc:key">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the key entity of a regkeyauditedpermissions_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
