Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: line
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#independent
Type: oval-sc:EntityItemStringType
Containing Schema: independent-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The line entity has been deprecated and will be removed in version 6.0 of the language. The line element represents a line in the file and is represented using a regular expression.

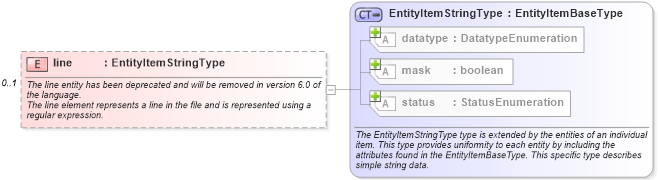

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of line in schema independent-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="line" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The line entity has been deprecated and will be removed in version 6.0 of the language.</xsd:documentation>
        <xsd:documentation>The line element represents a line in the file and is represented using a regular expression.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="txtitemline" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-sc:textfilecontent_item/ind-sc:line">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the line entity of a textfilecontent_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
