Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: module_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#catos
Type: oval-def:ObjectType
Containing Schema: catos-definitions-schema.xsd
Abstract
Documentation:
The module_object element is used by a module test to specify the module to be evaluated. Each object extends the standard ObjectType as defined in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions schema. A module object consists of a single module_number entity that identifies the module to be used.

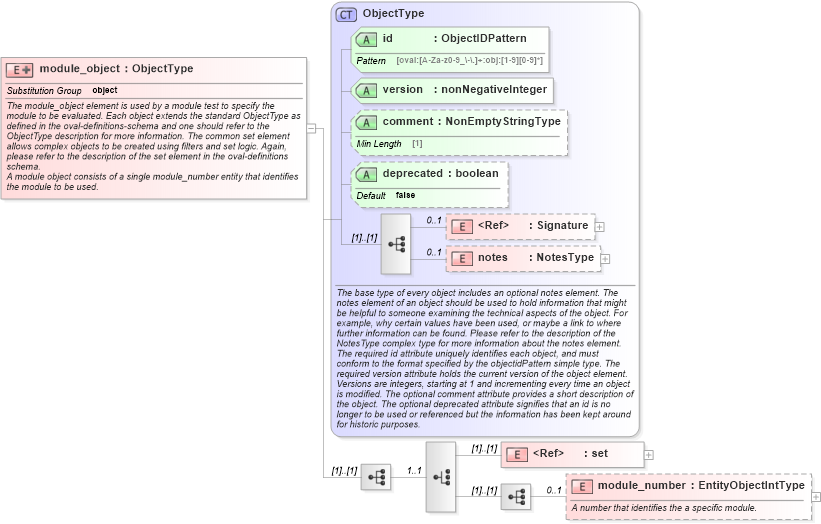

Collapse XSD Schema Diagram:
Drilldown into module_number in schema catos-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of module_object in schema catos-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="module_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The module_object element is used by a module test to specify the module to be evaluated. Each object extends the standard ObjectType as defined in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions schema.</xsd:documentation>
        <xsd:documentation>A module object consists of a single module_number entity that identifies the module to be used.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="1">
                        <xsd:element ref="oval-def:set" />
                        <xsd:sequence>
                            <xsd:element name="module_number" type="oval-def:EntityObjectIntType" minOccurs="0" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>A number that identifies the a specific module.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="moduleobjmodule_number" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="catos-def:module_object/catos-def:module_number">
                                                <sch:assert test="@datatype='int'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the module_number entity of a module_object should be 'int'</sch:assert>
                                                <sch:assert test="not(@operation) or @operation='equals' or @operation='not equal' or @operation='greater than' or @operation='greater than or equal' or @operation='less than' or @operation='less than or equal'">
                                                    <sch:value-of select="../@id" /> - operation attribute for the module_number entity of a module_object should be 'equals', 'not equal', 'greater than', 'greater than or equal', 'less than', or 'less than or equal'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set (1) (1)
module_number catos-def:module_number 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
