Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: patch_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#esx
Type: oval-def:ObjectType
Containing Schema: esx-definitions-schema.xsd
Abstract
Documentation:
The patch_object element is used by a patch test to define those objects to be evaluated based on a specified state. Each object extends the standard ObjectType as defined in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema. A package object consists of a single patch_number entity that identifies the patch to be checked.

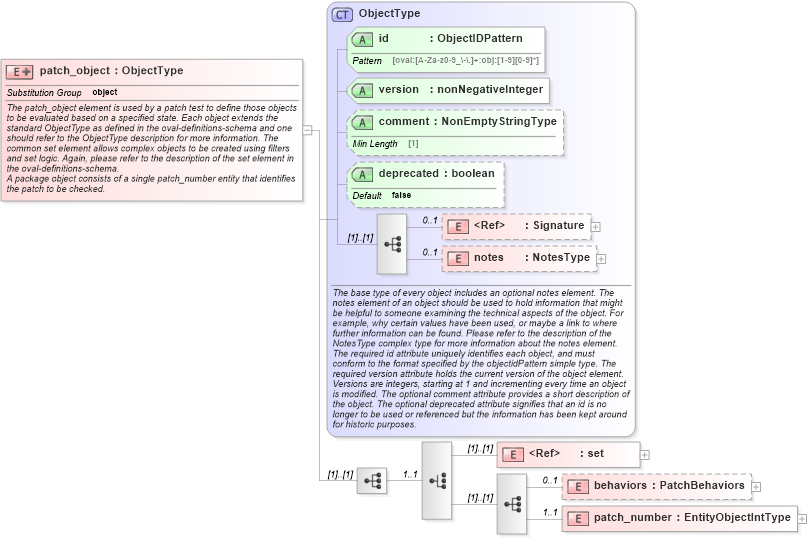

Collapse XSD Schema Diagram:
Drilldown into patch_number in schema esx-definitions-schema_xsd Drilldown into behaviors in schema esx-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of patch_object in schema esx-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="patch_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The patch_object element is used by a patch test to define those objects to be evaluated based on a specified state. Each object extends the standard ObjectType as defined in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
        <xsd:documentation>A package object consists of a single patch_number entity that identifies the patch to be checked.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="1">
                        <xsd:element ref="oval-def:set" />
                        <xsd:sequence>
                            <xsd:element name="behaviors" type="esx-def:PatchBehaviors" minOccurs="0" maxOccurs="1" />
                            <xsd:element name="patch_number" type="oval-def:EntityObjectIntType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation />
                                    <xsd:appinfo>
                                        <sch:pattern id="esxpatchobjpatch_number" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="esx-def:patch_object/esx-def:patch_number">
                                                <sch:assert test="@datatype='int'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the patch_number entity of a patch_object should be 'int'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set (1) (1)
behaviors esx-def:behaviors 0 1
patch_number esx-def:patch_number 1 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
