Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: port_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:ObjectType
Containing Schema: windows-definitions-schema.xsd
Abstract
Documentation:
The port_object element is used by a port test to define the specific port(s) to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema. A port object defines the local address, port number, and protocol of the port(s).

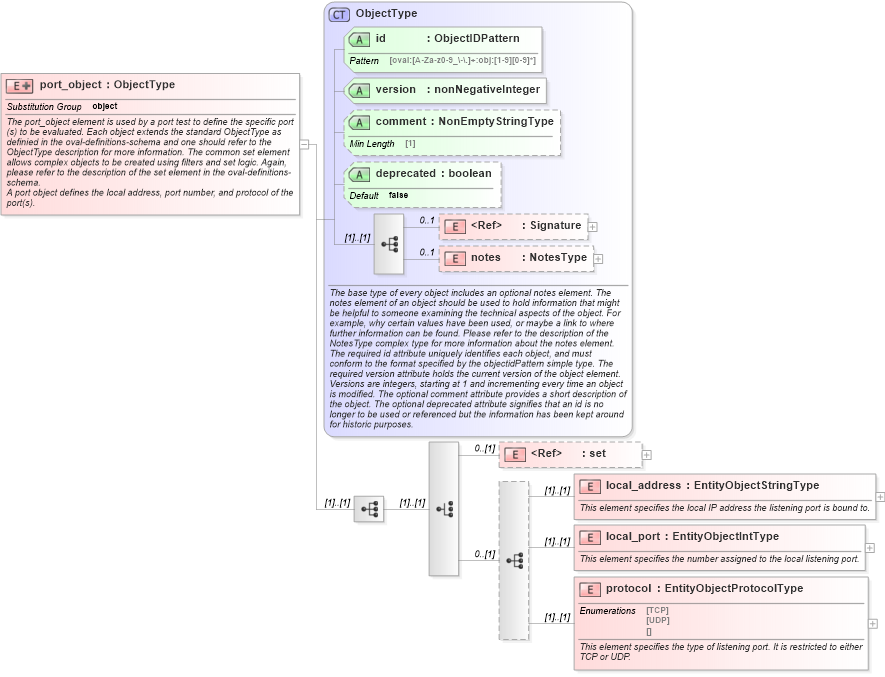

Collapse XSD Schema Diagram:
Drilldown into protocol in schema windows-definitions-schema_xsd Drilldown into local_port in schema windows-definitions-schema_xsd Drilldown into local_address in schema windows-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of port_object in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="port_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The port_object element is used by a port test to define the specific port(s) to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
        <xsd:documentation>A port object defines the local address, port number, and protocol of the port(s).</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice>
                        <xsd:element ref="oval-def:set" minOccurs="0" />
                        <xsd:sequence minOccurs="0">
                            <xsd:element name="local_address" type="oval-def:EntityObjectStringType">
                                <xsd:annotation>
                                    <xsd:documentation>This element specifies the local IP address the listening port is bound to.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="winportobjlocal_address" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="win-def:port_object/win-def:local_address">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the local_address entity of a port_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="local_port" type="oval-def:EntityObjectIntType">
                                <xsd:annotation>
                                    <xsd:documentation>This element specifies the number assigned to the local listening port.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="winportobjlocal_port" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="win-def:port_object/win-def:local_port">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the local_port entity of a port_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="protocol" type="win-def:EntityObjectProtocolType">
                                <xsd:annotation>
                                    <xsd:documentation>This element specifies the type of listening port. It is restricted to either TCP or UDP.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="winportobjprotocol" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="win-def:port_object/win-def:protocol">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the protocol entity of a port_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set 0 (1)
local_address win-def:local_address (1) (1)
local_port win-def:local_port (1) (1)
protocol win-def:protocol (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
