Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: rootpath
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:EntityItemStringType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
A string that contains the root directory of the volume to be described. A trailing backslash is required. For example, you would specify \\MyServer\MyShare as "\\MyServer\MyShare\", or the C drive as "C:\".

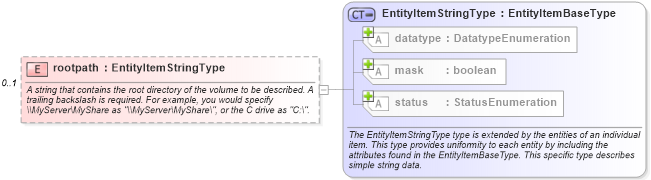

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of rootpath in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="rootpath" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>A string that contains the root directory of the volume to be described. A trailing backslash is required. For example, you would specify \\MyServer\MyShare as "\\MyServer\MyShare\", or the C drive as "C:\".</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="volitemrootpath" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-sc:volume_item/win-sc:rootpath">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the rootpath entity of a volume_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
