Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: runlevel_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#unix
Type: oval-def:ObjectType
Containing Schema: unix-definitions-schema.xsd
Abstract
Documentation:
The runlevel_object element is used by a runlevel_test to define the specific service(s)/runlevel combination to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.

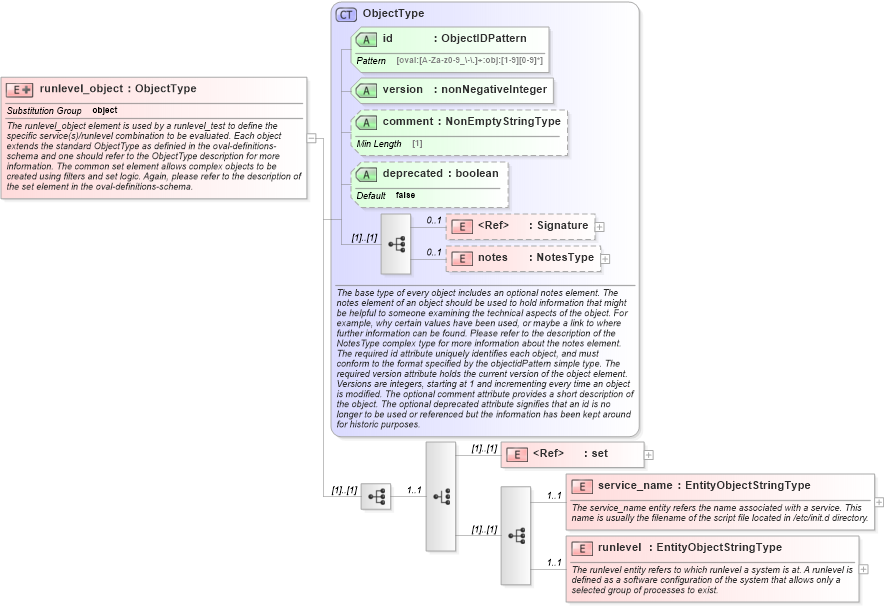

Collapse XSD Schema Diagram:
Drilldown into runlevel in schema unix-definitions-schema_xsd Drilldown into service_name in schema unix-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of runlevel_object in schema unix-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="runlevel_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The runlevel_object element is used by a runlevel_test to define the specific service(s)/runlevel combination to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="1">
                        <xsd:element ref="oval-def:set" />
                        <xsd:sequence>
                            <xsd:element name="service_name" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>The service_name entity refers the name associated with a service. This name is usually the filename of the script file located in /etc/init.d directory.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="unixrlobjservice_name" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="unix-def:runlevel_object/unix-def:service_name">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the service_name entity of a runlevel_object be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                            <xsd:element name="runlevel" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>The runlevel entity refers to which runlevel a system is at. A runlevel is defined as a software configuration of the system that allows only a selected group of processes to exist.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="unixrlobjrunlevel" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="unix-def:runlevel_object/unix-def:runlevel">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the runlevel entity of a runlevel_object be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set (1) (1)
service_name unix-def:service_name 1 1
runlevel unix-def:runlevel 1 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
