Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: snmp_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#ios
Type: oval-def:ObjectType
Containing Schema: ios-definitions-schema.xsd
Abstract
Documentation:
The snmp_object element is used by a snmp test to define those objects to evaluated based on a specified state. There is actually only one object relating to snmp and this is the system as a whole. Therefore, there are no child entities defined. Any OVAL Test written to check snmp will reference the same snmp_object which is basically an empty object element.

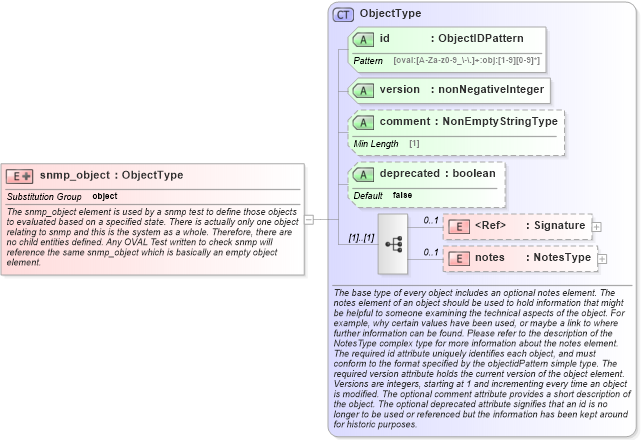

Collapse XSD Schema Diagram:
Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of snmp_object in schema ios-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="snmp_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The snmp_object element is used by a snmp test to define those objects to evaluated based on a specified state. There is actually only one object relating to snmp and this is the system as a whole. Therefore, there are no child entities defined. Any OVAL Test written to check snmp will reference the same snmp_object which is basically an empty object element.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType" />
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
