Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5
Type: oval-def:StateType
Containing Schema: oval-definitions-schema.xsd
Abstract True
Documentation:
The state element is an abstract element that is meant to be extended (via substitution groups) by the states found in the component schemas. An actual state element is not valid. The use of this abstract class simplifies the OVAL schema by allowing individual states to inherit the optional notes child element, and the id and operator attributes from the base StateType. Please refer to the description of the StateType complex type for more information. An OVAL State is a collection of one or more characteristics pertaining to a specific object type. The OVAL State is used by an OVAL Test to determine if a set of items identified on a system meet certain characteristics.

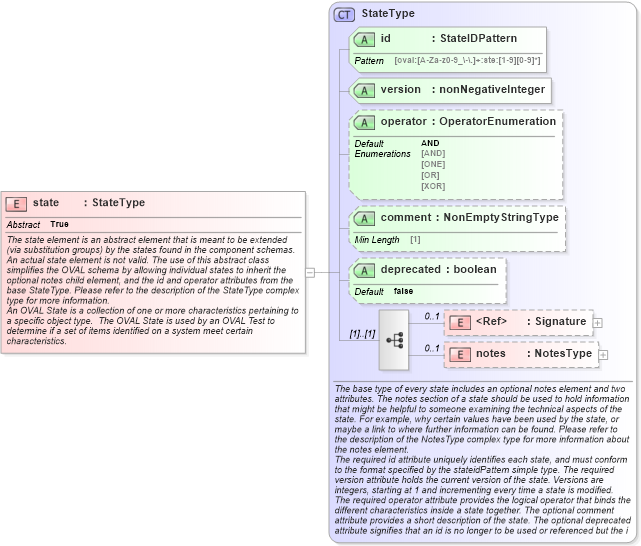

Collapse XSD Schema Diagram:
Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of state in schema oval-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="state" type="oval-def:StateType" abstract="true">
    <xsd:annotation>
        <xsd:documentation>The state element is an abstract element that is meant to be extended (via substitution groups) by the states found in the component schemas. An actual state element is not valid. The use of this abstract class simplifies the OVAL schema by allowing individual states to inherit the optional notes child element, and the id and operator attributes from the base StateType. Please refer to the description of the StateType complex type for more information.</xsd:documentation>
        <xsd:documentation>An OVAL State is a collection of one or more characteristics pertaining to a specific object type.  The OVAL State is used by an OVAL Test to determine if a set of items identified on a system meet certain characteristics.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
