Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: test
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5
Type: oval-def:TestType
Containing Schema: oval-definitions-schema.xsd
Abstract True
Documentation:
The test element is an abstract element that is meant to be extended (via substitution groups) by the individual tests found in the component schemas. An OVAL Test is used to compare an object(s) against a defined state. An actual test element is not valid. The use of this abstract class simplifies the OVAL schema by allowing individual tests to inherit the optional notes child element, and the id and comment attributes from the base TestType. Please refer to the description of the TestType complex type for more information.

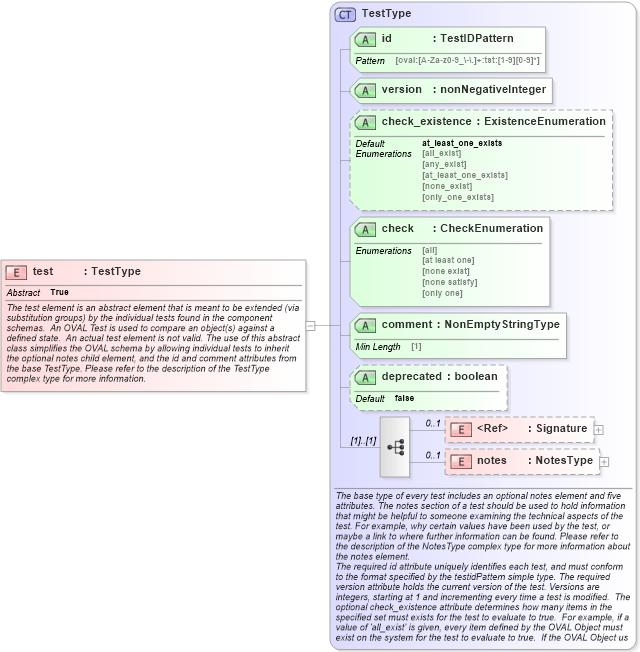

Collapse XSD Schema Diagram:
Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into check in schema oval-definitions-schema_xsd Drilldown into check_existence in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into TestType in schema oval-definitions-schema_xsdXSD Diagram of test in schema oval-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="test" type="oval-def:TestType" abstract="true">
    <xsd:annotation>
        <xsd:documentation>The test element is an abstract element that is meant to be extended (via substitution groups) by the individual tests found in the component schemas.  An OVAL Test is used to compare an object(s) against a defined state.  An actual test element is not valid. The use of this abstract class simplifies the OVAL schema by allowing individual tests to inherit the optional notes child element, and the id and comment attributes from the base TestType. Please refer to the description of the TestType complex type for more information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
check_existence oval-def:check_existence at_least_one_exists Optional
check oval-def:check Required
comment oval-def:comment Required
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
