Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: value
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#independent
Type: oval-sc:EntityItemStringType
Containing Schema: independent-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The value of the variable. If a variable represents and array of values, then multiple value elements should exist.

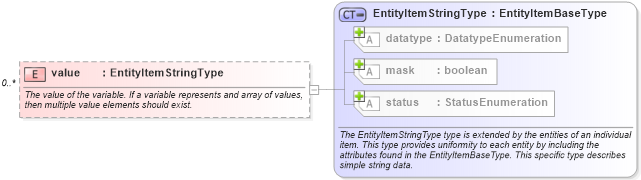

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of value in schema independent-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="value" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>The value of the variable. If a variable represents and array of values, then multiple value elements should exist.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="varitemvalue" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="ind-sc:variable_item/ind-sc:value">
                    <sch:assert test="(@datatype='int' and (floor(.) = number(.))) or not(@datatype='int') or not(node())">
                        <sch:value-of select="../@id" /> - The datatype has been set to 'int' but the value is not an integer.</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
