<xsd:element name="value" type="oval-sc:EntityItemAnyType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>The value entity holds the actual value of the specified registry key. The representation of the value as well as the associated datatype attribute depends on type of data stored in the registry key. If the specified registry key is of type REG_BINARY, then the datatype attribute should be set to 'binary' and the data represented by the value entity should follow the xsd:hexBinary form. (each binary octet is encoded as two hex digits) If the registry key is of type REG_DWORD or REG_QWORD, then the datatype attribute should be set to 'int' and the value entity should represent the data as an integer. If the specified registry key is of type REG_EXPAND_SZ, then the datatype attribute should be set to 'string' and the pre-expanded string should be represented by the value entity. If the specified registry key is of type REG_MULTI_SZ, then multiple value entities should exist to describe the array of strings, with each value element holds a single string. In the end, there should be the same number of value entities as there are strings in the reg_multi_sz array. If the specified registry key is of type REG_SZ, then the datatype should be 'string' and the value entity should be a copy of the string.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="regitemvalue" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-sc:registry_item/win-sc:value">
<sch:assert test="(@datatype='int' and (floor(.) = number(.))) or not(@datatype='int') or not(node())">
<sch:value-of select="../@id" /> - The datatype has been set to 'int' but the value is not an integer.</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
|

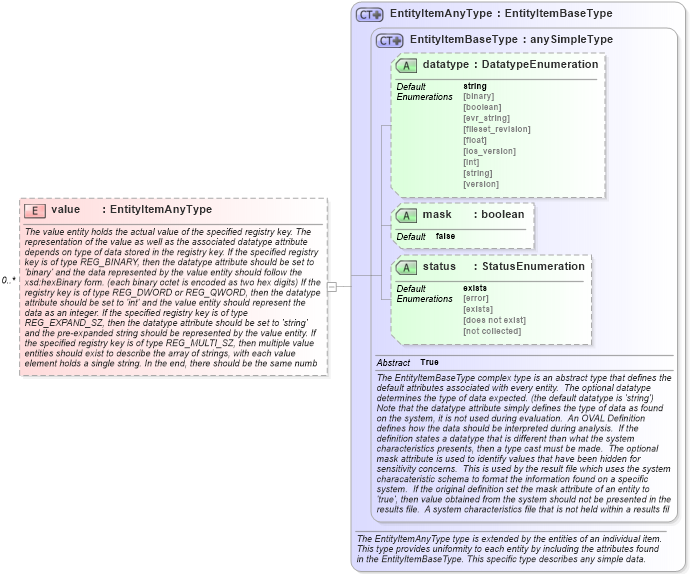

XSD Schema Diagram:
