Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: volume_max_component_length
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:EntityItemIntType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The volume_max_component_length element specifies the maximum length, in TCHARs, of a file name component that a specified file system supports. A file name component is the portion of a file name between backslashes. The value that is stored in the variable that *lpMaximumComponentLength points to is used to indicate that a specified file system supports long names. For example, for a FAT file system that supports long names, the function stores the value 255, rather than the previous 8.3 indicator. Long names can also be supported on systems that use the NTFS file system.

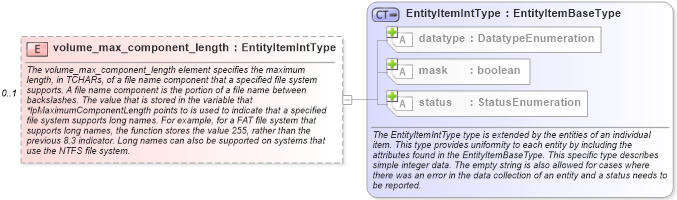

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemIntType in schema oval-system-characteristics-schema_xsdXSD Diagram of volume_max_component_length in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="volume_max_component_length" type="oval-sc:EntityItemIntType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The volume_max_component_length element specifies the maximum length, in TCHARs, of a file name component that a specified file system supports. A file name component is the portion of a file name between backslashes. The value that is stored in the variable that *lpMaximumComponentLength points to is used to indicate that a specified file system supports long names. For example, for a FAT file system that supports long names, the function stores the value 255, rather than the previous 8.3 indicator. Long names can also be supported on systems that use the NTFS file system.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="volitemvolume_max_component_length" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-sc:volume_item/win-sc:volume_max_component_length">
                    <sch:assert test="@datatype='int'">item <sch:value-of select="../@id" /> - datatype attribute for the volume_max_component_length entity of a volume_item should be 'int'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
