Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: wql
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:EntityItemStringType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
A WQL query used to identify the object(s) specified. Any valid WQL query is allowed with one exception, at most one field is allowed in the SELECT portion of the query. For example SELECT name FROM ... is valid, as is SELECT 'true' FROM ..., but SELECT name, number FROM ... is not valid. This is because the result element in the data section is only designed to work against a single field.

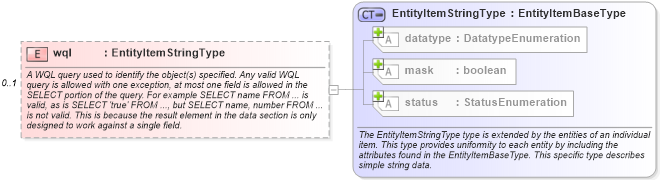

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of wql in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="wql" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>A WQL query used to identify the object(s) specified. Any valid WQL query is allowed with one exception, at most one field is allowed in the SELECT portion of the query. For example SELECT name FROM ... is valid, as is SELECT 'true' FROM ..., but SELECT name, number FROM ... is not valid. This is because the result element in the data section is only designed to work against a single field.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="wmiitemwql" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-sc:wmi_item/win-sc:wql">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the wql entity of a wmi_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
