Definition Type: Element
Name: AuthnStatement
Namespace: urn:oasis:names:tc:SAML:2.0:assertion
Type: saml:AuthnStatementType
Containing Schema: saml-schema-assertion-2.0.xsd
Abstract
Collapse XSD Schema Diagram:

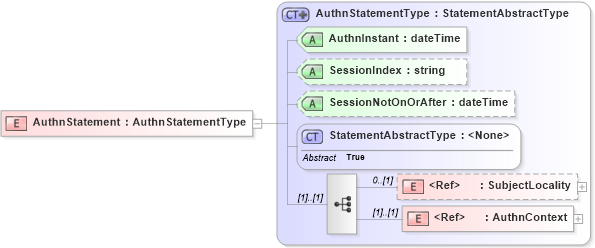

Drilldown into AuthnContext in schema saml-schema-assertion-2_0_xsd Drilldown into SubjectLocality in schema saml-schema-assertion-2_0_xsd Drilldown into StatementAbstractType in schema saml-schema-assertion-2_0_xsd Drilldown into SessionNotOnOrAfter in schema saml-schema-assertion-2_0_xsd Drilldown into SessionIndex in schema saml-schema-assertion-2_0_xsd Drilldown into AuthnInstant in schema saml-schema-assertion-2_0_xsd Drilldown into AuthnStatementType in schema saml-schema-assertion-2_0_xsdXSD Diagram of AuthnStatement in schema saml-schema-assertion-2_0_xsd (OASIS Security Services (SAML) TC)
Collapse XSD Schema Code:
<element name="AuthnStatement" type="saml:AuthnStatementType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubjectLocality saml:SubjectLocality 0 (1)
AuthnContext saml:AuthnContext (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
AuthnInstant saml:AuthnInstant Required
SessionIndex saml:SessionIndex Optional
SessionNotOnOrAfter saml:SessionNotOnOrAfter Optional
Collapse Derivation Tree:
