Documentation for OASIS Security Services (SAML) TC
Definition Type: ComplexType
Name: NameIDType
Namespace: urn:oasis:names:tc:SAML:2.0:assertion
Type: string:http://www.w3.org/2001/XMLSchema
Containing Schema: saml-schema-assertion-2.0.xsd
Abstract
Collapse XSD Schema Diagram:

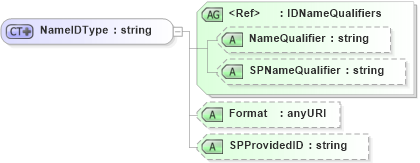

Drilldown into SPProvidedID in schema saml-schema-assertion-2_0_xsd Drilldown into Format in schema saml-schema-assertion-2_0_xsd Drilldown into SPNameQualifier in schema saml-schema-assertion-2_0_xsd Drilldown into NameQualifier in schema saml-schema-assertion-2_0_xsd Drilldown into IDNameQualifiers in schema saml-schema-assertion-2_0_xsdXSD Diagram of NameIDType in schema saml-schema-assertion-2_0_xsd (OASIS Security Services (SAML) TC)
Collapse XSD Schema Code:
<complexType name="NameIDType">
    <simpleContent>
        <extension base="string">
            <attributeGroup ref="saml:IDNameQualifiers" />
            <attribute name="Format" type="anyURI" use="optional" />
            <attribute name="SPProvidedID" type="string" use="optional" />
        </extension>
    </simpleContent>
</complexType>
Collapse Child Attributes:
Name Type Default Value Use
NameQualifier saml:NameQualifier Optional
SPNameQualifier saml:SPNameQualifier Optional
Format saml:Format Optional
SPProvidedID saml:SPProvidedID Optional
Collapse Derivation Tree:
Collapse References:
saml:Issuer, saml:NameID
