Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: AttachedDocument
Namespace: urn:oasis:names:specification:ubl:schema:xsd:AttachedDocument-2
Type: nsB:AttachedDocumentType
Containing Schema: UBL-AttachedDocument-2.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

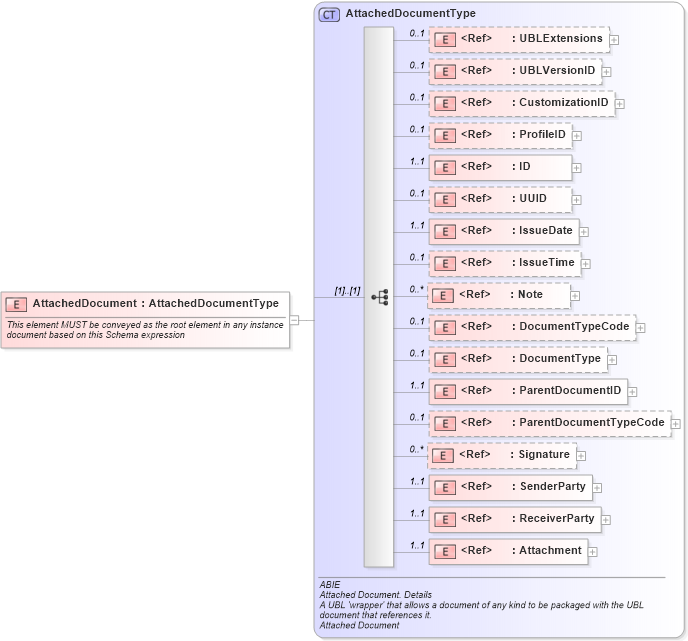

Collapse XSD Schema Diagram:
Drilldown into Attachment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReceiverParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SenderParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ParentDocumentTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ParentDocumentID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentType in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into AttachedDocumentType in schema ubl-attacheddocument-2_0_xsdXSD Diagram of AttachedDocument in schema ubl-attacheddocument-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="AttachedDocument" type="AttachedDocumentType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
Note cbc:Note 0 unbounded
DocumentTypeCode cbc:DocumentTypeCode 0 1
DocumentType cbc:DocumentType 0 1
ParentDocumentID cbc:ParentDocumentID 1 1
ParentDocumentTypeCode cbc:ParentDocumentTypeCode 0 1
Signature cac:Signature 0 unbounded
SenderParty cac:SenderParty 1 1
ReceiverParty cac:ReceiverParty 1 1
Attachment cac:Attachment 1 1
Collapse Derivation Tree:
