Definition Type: Element
Name: CataloguePricingUpdate
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CataloguePricingUpdate-2
Type: nsG:CataloguePricingUpdateType
Containing Schema: UBL-CataloguePricingUpdate-2.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

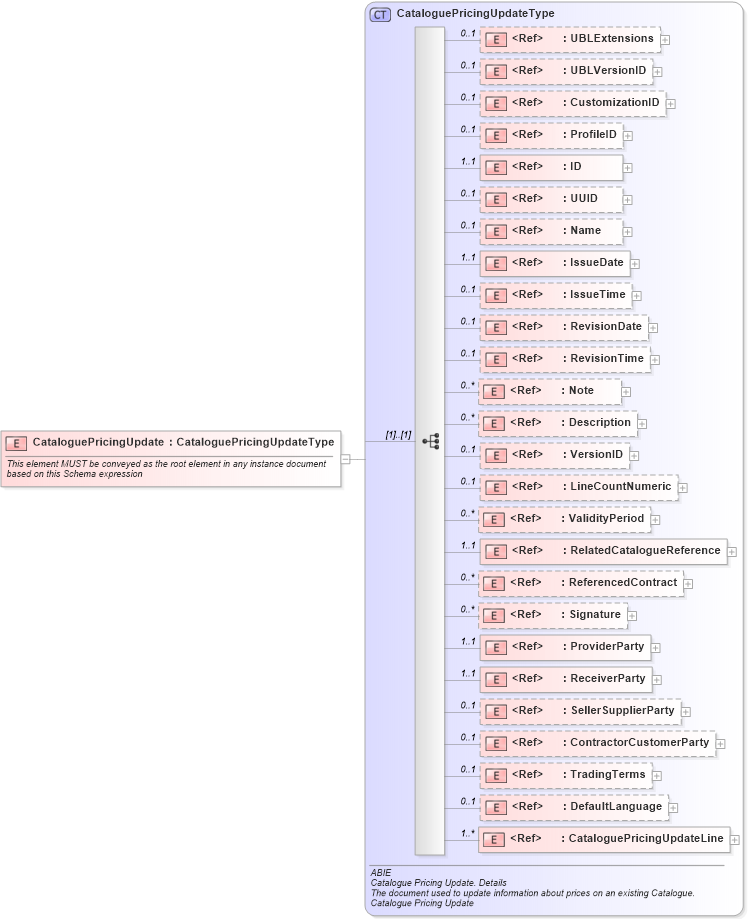

Collapse XSD Schema Diagram:
Drilldown into CataloguePricingUpdateLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DefaultLanguage in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TradingTerms in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContractorCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReceiverParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ProviderParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReferencedContract in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RelatedCatalogueReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ValidityPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into VersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RevisionTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RevisionDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into CataloguePricingUpdateType in schema ubl-cataloguepricingupdate-2_0_xsdXSD Diagram of CataloguePricingUpdate in schema ubl-cataloguepricingupdate-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CataloguePricingUpdate" type="CataloguePricingUpdateType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
UUID cbc:UUID 0 1
Name cbc:Name 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
RevisionDate cbc:RevisionDate 0 1
RevisionTime cbc:RevisionTime 0 1
Note cbc:Note 0 unbounded
Description cbc:Description 0 unbounded
VersionID cbc:VersionID 0 1
LineCountNumeric cbc:LineCountNumeric 0 1
ValidityPeriod cac:ValidityPeriod 0 unbounded
RelatedCatalogueReference cac:RelatedCatalogueReference 1 1
ReferencedContract cac:ReferencedContract 0 unbounded
Signature cac:Signature 0 unbounded
ProviderParty cac:ProviderParty 1 1
ReceiverParty cac:ReceiverParty 1 1
SellerSupplierParty cac:SellerSupplierParty 0 1
ContractorCustomerParty cac:ContractorCustomerParty 0 1
TradingTerms cac:TradingTerms 0 1
DefaultLanguage cac:DefaultLanguage 0 1
CataloguePricingUpdateLine cac:CataloguePricingUpdateLine 1 unbounded
Collapse Derivation Tree:
