Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: CatalogueRequestType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CatalogueRequest-2
Containing Schema: UBL-CatalogueRequest-2.0.xsd
Abstract
Documentation:
ABIE Catalogue Request. Details The document used to request a Catalogue. Catalogue Request

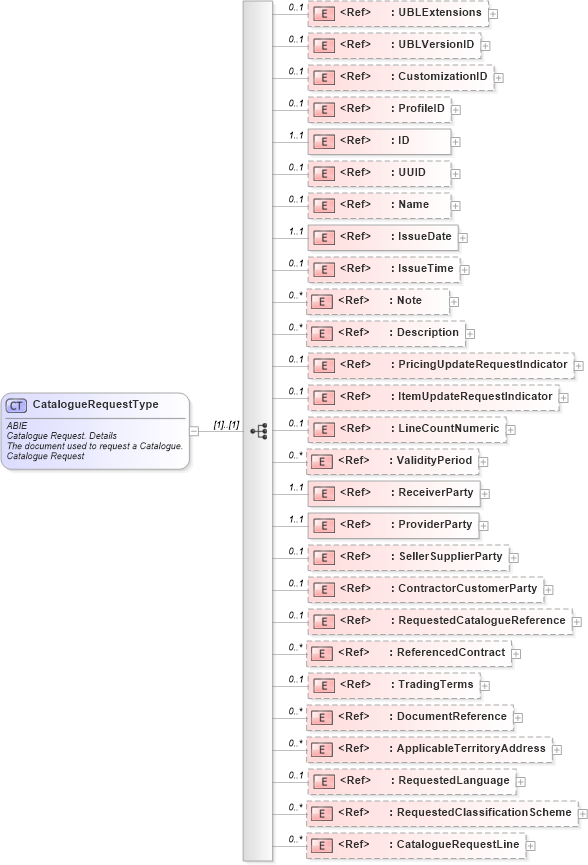

Collapse XSD Schema Diagram:
Drilldown into CatalogueRequestLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RequestedClassificationScheme in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RequestedLanguage in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ApplicableTerritoryAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TradingTerms in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReferencedContract in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RequestedCatalogueReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContractorCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ProviderParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReceiverParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ValidityPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ItemUpdateRequestIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PricingUpdateRequestIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsdXSD Diagram of CatalogueRequestType in schema ubl-cataloguerequest-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="CatalogueRequestType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Catalogue Request. Details</ccts:DictionaryEntryName>
                <ccts:Definition>The document used to request a Catalogue.</ccts:Definition>
                <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ext:UBLExtensions" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>A container for all extensions present in the document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UBLVersionID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. UBL Version Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The earliest version of the UBL 2 schema for this document type that defines all of the elements that might be encountered in the current instance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>UBL Version Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>2.0.5</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CustomizationID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Customization Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies a user-defined customization of UBL for a specific use.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Customization Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>NES</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ProfileID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Profile Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies a user-defined profile of the subset of UBL being used.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Profile Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>BasicProcurementProcess</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Catalogue Request assigned by the Catalogue Managing Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UUID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. UUID. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>A universally unique identifier for an instance of this ABIE.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>UUID</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Name" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>A name given to the Catalogue Request.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:Examples>"winter 2005 collection"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueDate" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Issue Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date assigned by the Catalogue Managing Party on which the Catalogue was requested.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Issue Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The time assigned by the Catalogue Managing Party at which the Catalogue was requested.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form text applying to the Catalogue Request. This element may contain notes or any other similar information that is not contained explicitly in another structure.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Description" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Description. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Describes the Catalogue Request.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"latest computer accessories for laptops"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PricingUpdateRequestIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Pricing Update Request_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>The indicator requesting a pricing update.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Pricing Update Request</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                        <ccts:Examples>default is true</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ItemUpdateRequestIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Item Update Request_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>The indicator requesting an update of the item specifications.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Item Update Request</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                        <ccts:Examples>default is true</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LineCountNumeric" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Line Count. Numeric</ccts:DictionaryEntryName>
                        <ccts:Definition>The number of lines in the document.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Count</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Numeric</ccts:RepresentationTerm>
                        <ccts:DataType>Numeric. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:ValidityPeriod" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Validity_ Period. Period</ccts:DictionaryEntryName>
                        <ccts:Definition>The period assigned by the Catalogue Managing Party during which the information in the Catalogue requested is to be effective.  This may be given as start and end dates or a duration.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Validity</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Period</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Period</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:ReceiverParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Receiver_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Catalogue Receiver Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Receiver</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:ProviderParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Provider_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Catalogue Provider Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Provider</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:SellerSupplierParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Seller_ Supplier Party. Supplier Party</ccts:DictionaryEntryName>
                        <ccts:Definition>The Supplier Party responsible for the contract to which the Catalogue relates.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Seller</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Supplier Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Supplier Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:ContractorCustomerParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Contractor_ Customer Party. Customer Party</ccts:DictionaryEntryName>
                        <ccts:Definition>The Customer Party responsible for the contract to which the Catalogue relates.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Contractor</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Customer Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Customer Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:RequestedCatalogueReference" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Requested_ Catalogue Reference. Catalogue Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to a specific Catalogue; used if the Catalogue Request is for an update.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Requested</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Catalogue Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Catalogue Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:ReferencedContract" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Referenced_ Contract. Contract</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to a framework agreement or contract.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Referenced</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Contract</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contract</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:TradingTerms" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Trading Terms</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to trading terms.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Trading Terms</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Trading Terms</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:DocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to other documents.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:ApplicableTerritoryAddress" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Applicable Territory_ Address. Address</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the territory (regions, country, city, etc.) to which the requested Catalogue will apply.  Expressed as an Address.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Applicable Territory</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Address</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Address</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:RequestedLanguage" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Requested_ Language. Language</ccts:DictionaryEntryName>
                        <ccts:Definition>The language in which the Catalogue is requested to be provided.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Requested</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Language</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Language</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:RequestedClassificationScheme" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Requested_ Classification Scheme. Classification Scheme</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to classification categories for the Catalogue requested.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Requested</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Classification Scheme</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Classification Scheme</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:CatalogueRequestLine" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Catalogue Request. Catalogue Request Line</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to specific Catalogue Lines for the catalogue requested.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Catalogue Request</ccts:ObjectClass>
                        <ccts:PropertyTerm>Catalogue Request Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Catalogue Request Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
UUID cbc:UUID 0 1
Name cbc:Name 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
Note cbc:Note 0 unbounded
Description cbc:Description 0 unbounded
PricingUpdateRequestIndicator cbc:PricingUpdateRequestIndicator 0 1
ItemUpdateRequestIndicator cbc:ItemUpdateRequestIndicator 0 1
LineCountNumeric cbc:LineCountNumeric 0 1
ValidityPeriod cac:ValidityPeriod 0 unbounded
ReceiverParty cac:ReceiverParty 1 1
ProviderParty cac:ProviderParty 1 1
SellerSupplierParty cac:SellerSupplierParty 0 1
ContractorCustomerParty cac:ContractorCustomerParty 0 1
RequestedCatalogueReference cac:RequestedCatalogueReference 0 1
ReferencedContract cac:ReferencedContract 0 unbounded
TradingTerms cac:TradingTerms 0 1
DocumentReference cac:DocumentReference 0 unbounded
ApplicableTerritoryAddress cac:ApplicableTerritoryAddress 0 unbounded
RequestedLanguage cac:RequestedLanguage 0 1
RequestedClassificationScheme cac:RequestedClassificationScheme 0 unbounded
CatalogueRequestLine cac:CatalogueRequestLine 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsH:CatalogueRequest
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
