Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: ClassificationScheme
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:ClassificationSchemeType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

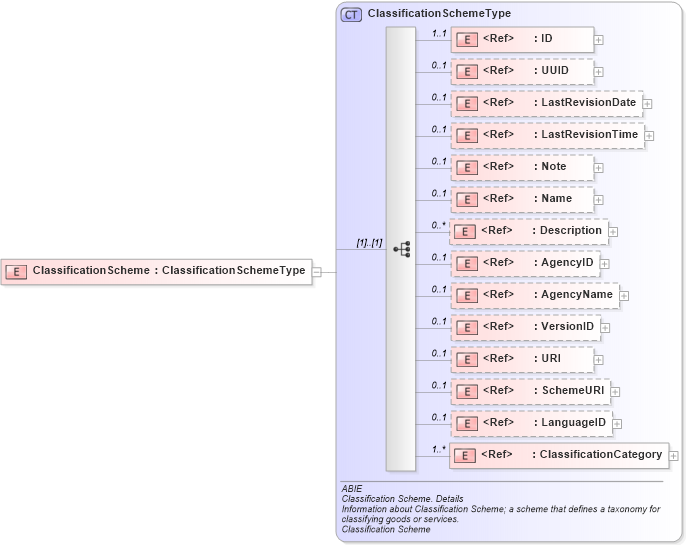

Collapse XSD Schema Diagram:
Drilldown into ClassificationCategory in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LanguageID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SchemeURI in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into URI in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into VersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AgencyName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AgencyID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LastRevisionTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LastRevisionDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ClassificationSchemeType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of ClassificationScheme in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ClassificationScheme" type="ClassificationSchemeType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
UUID cbc:UUID 0 1
LastRevisionDate cbc:LastRevisionDate 0 1
LastRevisionTime cbc:LastRevisionTime 0 1
Note cbc:Note 0 1
Name cbc:Name 0 1
Description cbc:Description 0 unbounded
AgencyID cbc:AgencyID 0 1
AgencyName cbc:AgencyName 0 1
VersionID cbc:VersionID 0 1
URI cbc:URI 0 1
SchemeURI cbc:SchemeURI 0 1
LanguageID cbc:LanguageID 0 1
ClassificationCategory cac:ClassificationCategory 1 unbounded
Collapse Derivation Tree:
