Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: CurrentStatus
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:StatusType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

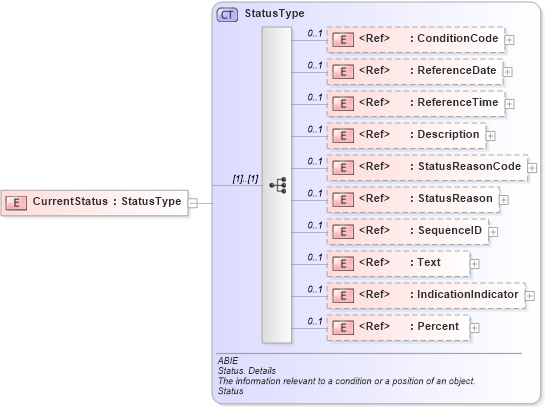

Collapse XSD Schema Diagram:
Drilldown into Percent in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IndicationIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Text in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SequenceID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into StatusReason in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into StatusReasonCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ReferenceTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ReferenceDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ConditionCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into StatusType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of CurrentStatus in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CurrentStatus" type="StatusType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ConditionCode cbc:ConditionCode 0 1
ReferenceDate cbc:ReferenceDate 0 1
ReferenceTime cbc:ReferenceTime 0 1
Description cbc:Description 0 1
StatusReasonCode cbc:StatusReasonCode 0 1
StatusReason cbc:StatusReason 0 1
SequenceID cbc:SequenceID 0 1
Text cbc:Text 0 1
IndicationIndicator cbc:IndicationIndicator 0 1
Percent cbc:Percent 0 1
Collapse Derivation Tree:
