Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: Delivery
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:DeliveryType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

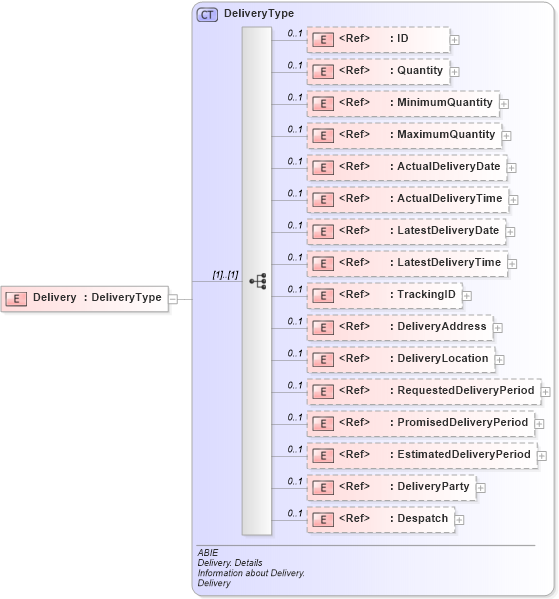

Collapse XSD Schema Diagram:
Drilldown into Despatch in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EstimatedDeliveryPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PromisedDeliveryPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RequestedDeliveryPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryLocation in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TrackingID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LatestDeliveryTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LatestDeliveryDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ActualDeliveryTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ActualDeliveryDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MaximumQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MinimumQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Quantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DeliveryType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of Delivery in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="Delivery" type="DeliveryType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
Quantity cbc:Quantity 0 1
MinimumQuantity cbc:MinimumQuantity 0 1
MaximumQuantity cbc:MaximumQuantity 0 1
ActualDeliveryDate cbc:ActualDeliveryDate 0 1
ActualDeliveryTime cbc:ActualDeliveryTime 0 1
LatestDeliveryDate cbc:LatestDeliveryDate 0 1
LatestDeliveryTime cbc:LatestDeliveryTime 0 1
TrackingID cbc:TrackingID 0 1
DeliveryAddress cac:DeliveryAddress 0 1
DeliveryLocation cac:DeliveryLocation 0 1
RequestedDeliveryPeriod cac:RequestedDeliveryPeriod 0 1
PromisedDeliveryPeriod cac:PromisedDeliveryPeriod 0 1
EstimatedDeliveryPeriod cac:EstimatedDeliveryPeriod 0 1
DeliveryParty cac:DeliveryParty 0 1
Despatch cac:Despatch 0 1
Collapse Derivation Tree:
