Definition Type: Element
Name: ForwardingInstructions
Namespace: urn:oasis:names:specification:ubl:schema:xsd:ForwardingInstructions-2
Type: nsM:ForwardingInstructionsType
Containing Schema: UBL-ForwardingInstructions-2.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

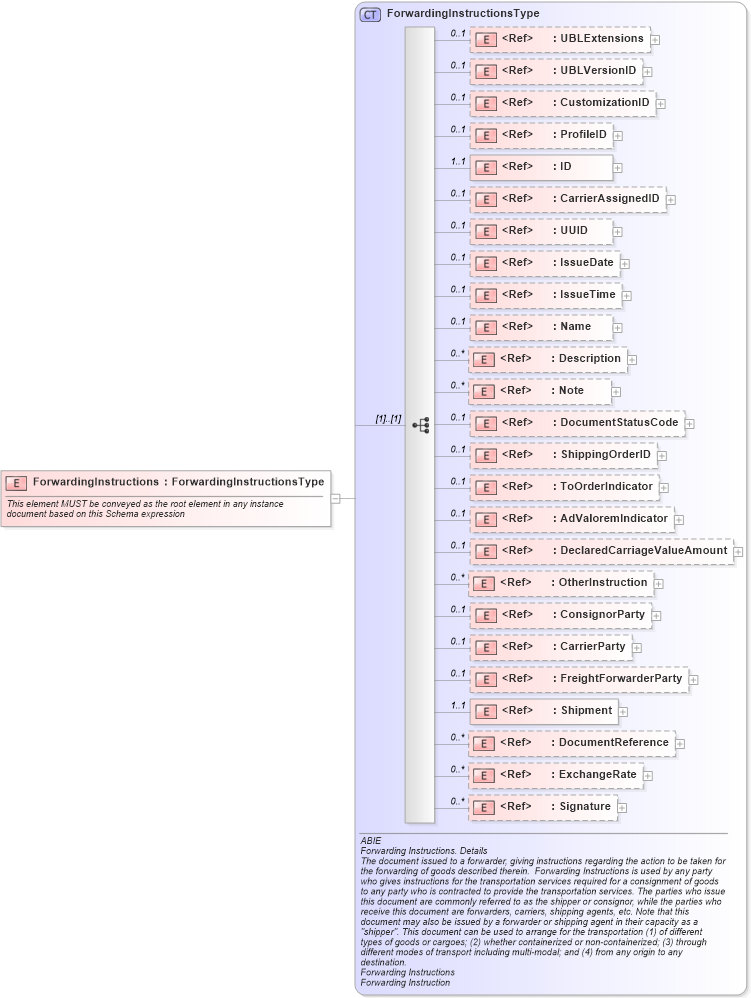

Collapse XSD Schema Diagram:
Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Shipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into FreightForwarderParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CarrierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ConsignorParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OtherInstruction in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DeclaredCarriageValueAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AdValoremIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ToOrderIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ShippingOrderID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CarrierAssignedID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ForwardingInstructionsType in schema ubl-forwardinginstructions-2_0_xsdXSD Diagram of ForwardingInstructions in schema ubl-forwardinginstructions-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ForwardingInstructions" type="ForwardingInstructionsType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
CarrierAssignedID cbc:CarrierAssignedID 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 0 1
IssueTime cbc:IssueTime 0 1
Name cbc:Name 0 1
Description cbc:Description 0 unbounded
Note cbc:Note 0 unbounded
DocumentStatusCode cbc:DocumentStatusCode 0 1
ShippingOrderID cbc:ShippingOrderID 0 1
ToOrderIndicator cbc:ToOrderIndicator 0 1
AdValoremIndicator cbc:AdValoremIndicator 0 1
DeclaredCarriageValueAmount cbc:DeclaredCarriageValueAmount 0 1
OtherInstruction cbc:OtherInstruction 0 unbounded
ConsignorParty cac:ConsignorParty 0 1
CarrierParty cac:CarrierParty 0 1
FreightForwarderParty cac:FreightForwarderParty 0 1
Shipment cac:Shipment 1 1
DocumentReference cac:DocumentReference 0 unbounded
ExchangeRate cac:ExchangeRate 0 unbounded
Signature cac:Signature 0 unbounded
Collapse Derivation Tree:
