Definition Type: Element
Name: HazardousItem
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:HazardousItemType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

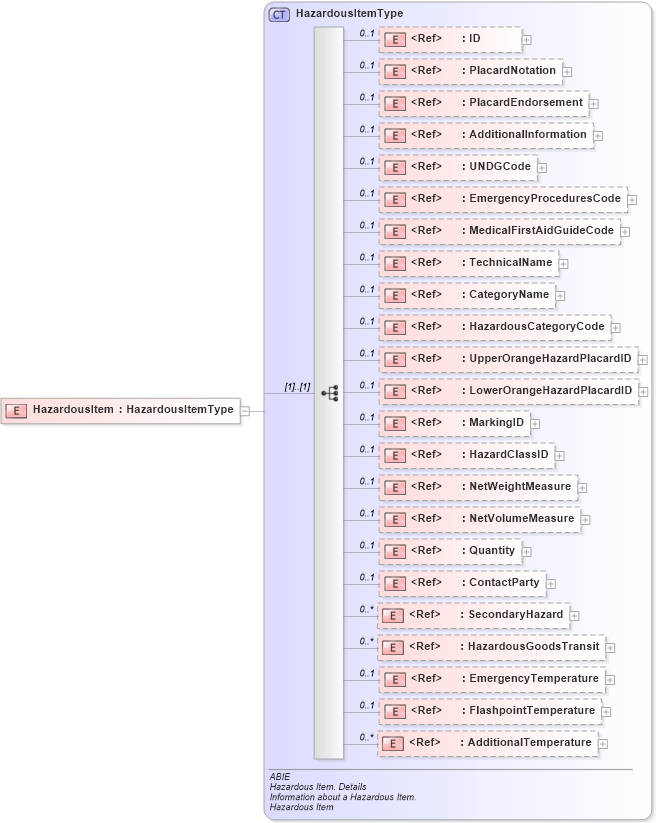

Collapse XSD Schema Diagram:
Drilldown into AdditionalTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into FlashpointTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EmergencyTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into HazardousGoodsTransit in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SecondaryHazard in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContactParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Quantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetVolumeMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into NetWeightMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardClassID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MarkingID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LowerOrangeHazardPlacardID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UpperOrangeHazardPlacardID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousCategoryCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CategoryName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TechnicalName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MedicalFirstAidGuideCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into EmergencyProceduresCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UNDGCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AdditionalInformation in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PlacardEndorsement in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PlacardNotation in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousItemType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of HazardousItem in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="HazardousItem" type="HazardousItemType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
PlacardNotation cbc:PlacardNotation 0 1
PlacardEndorsement cbc:PlacardEndorsement 0 1
AdditionalInformation cbc:AdditionalInformation 0 1
UNDGCode cbc:UNDGCode 0 1
EmergencyProceduresCode cbc:EmergencyProceduresCode 0 1
MedicalFirstAidGuideCode cbc:MedicalFirstAidGuideCode 0 1
TechnicalName cbc:TechnicalName 0 1
CategoryName cbc:CategoryName 0 1
HazardousCategoryCode cbc:HazardousCategoryCode 0 1
UpperOrangeHazardPlacardID cbc:UpperOrangeHazardPlacardID 0 1
LowerOrangeHazardPlacardID cbc:LowerOrangeHazardPlacardID 0 1
MarkingID cbc:MarkingID 0 1
HazardClassID cbc:HazardClassID 0 1
NetWeightMeasure cbc:NetWeightMeasure 0 1
NetVolumeMeasure cbc:NetVolumeMeasure 0 1
Quantity cbc:Quantity 0 1
ContactParty cac:ContactParty 0 1
SecondaryHazard cac:SecondaryHazard 0 unbounded
HazardousGoodsTransit cac:HazardousGoodsTransit 0 unbounded
EmergencyTemperature cac:EmergencyTemperature 0 1
FlashpointTemperature cac:FlashpointTemperature 0 1
AdditionalTemperature cac:AdditionalTemperature 0 unbounded
Collapse Derivation Tree:
