Definition Type: ComplexType
Name: PackageType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Package. Details Information about a package. Package

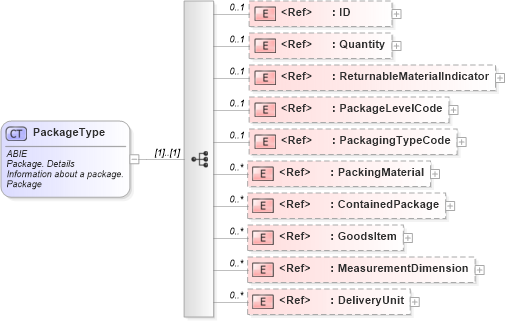

Collapse XSD Schema Diagram:
Drilldown into DeliveryUnit in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MeasurementDimension in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into GoodsItem in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContainedPackage in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PackingMaterial in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackagingTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackageLevelCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ReturnableMaterialIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Quantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of PackageType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="PackageType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Package. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a package.</ccts:Definition>
                <ccts:ObjectClass>Package</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the package.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Quantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The quantity (of items) contained in the package.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ReturnableMaterialIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Returnable Material_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the packaging material is returnable (true) or not (false).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Returnable Material</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PackageLevelCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Package Level Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Code specifying a level of packaging.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTerm>Package Level Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PackagingTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Packaging Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Code specifying the type of packaging of an item.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTerm>Packaging Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Packaging Type_ Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Package classification code</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PackingMaterial" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Packing Material. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Description of the type of packaging of an item.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTerm>Packing Material</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ContainedPackage" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Contained_ Package. Package</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Contained Package; used to describe a package within a package.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Contained</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Package</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Package</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="GoodsItem" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Goods Item</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Goods Item.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTerm>Goods Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Goods Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MeasurementDimension" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Measurement_ Dimension. Dimension</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to describe the measurement dimensions of the package.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Measurement</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Dimension</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Dimension</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DeliveryUnit" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Package. Delivery Unit</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Delivery Units in the package.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Package</ccts:ObjectClass>
                        <ccts:PropertyTerm>Delivery Unit</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Delivery Unit</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
Quantity cbc:Quantity 0 1
ReturnableMaterialIndicator cbc:ReturnableMaterialIndicator 0 1
PackageLevelCode cbc:PackageLevelCode 0 1
PackagingTypeCode cbc:PackagingTypeCode 0 1
PackingMaterial cbc:PackingMaterial 0 unbounded
ContainedPackage cac:ContainedPackage 0 unbounded
GoodsItem cac:GoodsItem 0 unbounded
MeasurementDimension cac:MeasurementDimension 0 unbounded
DeliveryUnit cac:DeliveryUnit 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:ActualPackage, cac:ContainedPackage, cac:Package
