Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: PaymentMeans
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:PaymentMeansType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

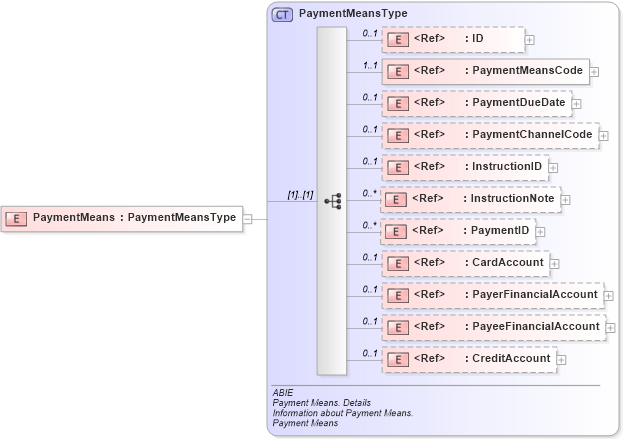

Collapse XSD Schema Diagram:
Drilldown into CreditAccount in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PayeeFinancialAccount in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PayerFinancialAccount in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CardAccount in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into InstructionNote in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into InstructionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentChannelCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentDueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentMeansCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentMeansType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of PaymentMeans in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="PaymentMeans" type="PaymentMeansType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
PaymentMeansCode cbc:PaymentMeansCode 1 1
PaymentDueDate cbc:PaymentDueDate 0 1
PaymentChannelCode cbc:PaymentChannelCode 0 1
InstructionID cbc:InstructionID 0 1
InstructionNote cbc:InstructionNote 0 unbounded
PaymentID cbc:PaymentID 0 unbounded
CardAccount cac:CardAccount 0 1
PayerFinancialAccount cac:PayerFinancialAccount 0 1
PayeeFinancialAccount cac:PayeeFinancialAccount 0 1
CreditAccount cac:CreditAccount 0 1
Collapse Derivation Tree:
