Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: QuantityType
Namespace: urn:un:unece:uncefact:data:specification:UnqualifiedDataTypesSchemaModule:2
Type: decimal:http://www.w3.org/2001/XMLSchema
Containing Schema: UnqualifiedDataTypeSchemaModule-2.0.xsd
Abstract
Documentation:
UDT0000018 UDT Quantity. Type 1.0 A counted number of non-monetary units possibly including fractions. Quantity decimal decimal
Collapse XSD Schema Diagram:

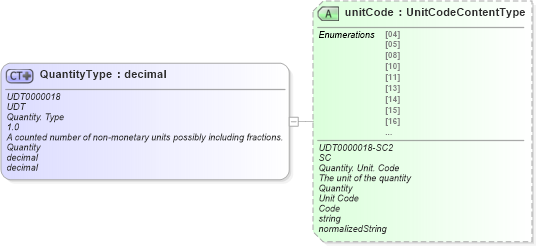

Drilldown into unitCode in schema unqualifieddatatypeschemamodule-2_0_xsdXSD Diagram of QuantityType in schema unqualifieddatatypeschemamodule-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="QuantityType">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">
            <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:2">UDT0000018</ccts:UniqueID>
            <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:2">UDT</ccts:CategoryCode>
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:2">Quantity. Type</ccts:DictionaryEntryName>
            <ccts:VersionID xmlns:ccts="urn:un:unece:uncefact:documentation:2">1.0</ccts:VersionID>
            <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">A counted number of non-monetary units possibly including fractions.</ccts:Definition>
            <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:2">Quantity</ccts:RepresentationTermName>
            <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">decimal</ccts:PrimitiveType>
            <xsd:BuiltinType>decimal</xsd:BuiltinType>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:extension base="xsd:decimal">
            <xsd:attribute name="unitCode" type="clm66411:UnitCodeContentType" use="optional">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">
                        <ccts:UniqueID xmlns:ccts="urn:un:unece:uncefact:documentation:2">UDT0000018-SC2</ccts:UniqueID>
                        <ccts:CategoryCode xmlns:ccts="urn:un:unece:uncefact:documentation:2">SC</ccts:CategoryCode>
                        <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:2">Quantity. Unit. Code</ccts:DictionaryEntryName>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">The unit of the quantity</ccts:Definition>
                        <ccts:ObjectClass xmlns:ccts="urn:un:unece:uncefact:documentation:2">Quantity</ccts:ObjectClass>
                        <ccts:PropertyTermName xmlns:ccts="urn:un:unece:uncefact:documentation:2">Unit Code</ccts:PropertyTermName>
                        <ccts:RepresentationTermName xmlns:ccts="urn:un:unece:uncefact:documentation:2">Code</ccts:RepresentationTermName>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">string</ccts:PrimitiveType>
                        <xsd:BuiltinType>normalizedString</xsd:BuiltinType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
unitCode udt:unitCode Optional
Collapse Derivation Tree:
Collapse References:
cbc:BackorderQuantityType, cbc:BaseQuantityType, cbc:BatchQuantityType, cbc:ConsumerUnitQuantityType, cbc:ContentUnitQuantityType, cbc:CreditedQuantityType, cbc:CustomsTariffQuantityType, cbc:DebitedQuantityType, cbc:DeliveredQuantityType, cbc:GoodsItemQuantityType, cbc:InvoicedQuantityType, cbc:MaximumBackorderQuantityType, cbc:MaximumOrderQuantityType, cbc:MaximumQuantityType, cbc:MinimumBackorderQuantityType, cbc:MinimumOrderQuantityType, cbc:MinimumQuantityType, cbc:OrderQuantityType, cbc:OutstandingQuantityType, cbc:OversupplyQuantityType, cbc:PackageQuantityType, cbc:PackagesQuantityType, cbc:PackQuantityType, cbc:QuantityType, cbc:ReceivedQuantityType, cbc:RejectedQuantityType, cbc:ShortQuantityType, cbc:TotalGoodsItemQuantityType, cbc:TotalPackageQuantityType, cbc:TotalPackagesQuantityType, cbc:TotalTransportHandlingUnitQuantityType, cbc:TransportHandlingUnitQuantityType, cbc:UnitQuantityType
