Definition Type: Element
Name: ReceiptDocumentReference
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:DocumentReferenceType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

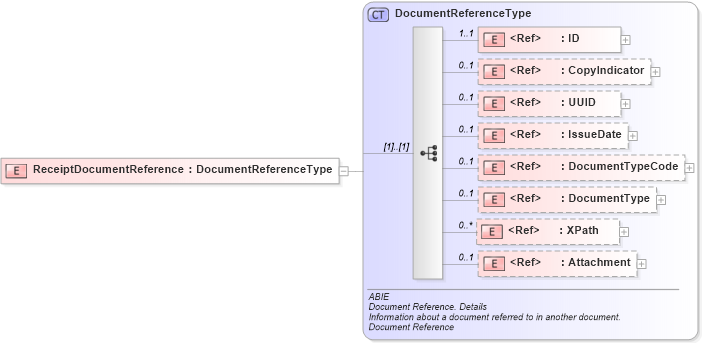

Collapse XSD Schema Diagram:
Drilldown into Attachment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into XPath in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentType in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentReferenceType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of ReceiptDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ReceiptDocumentReference" type="DocumentReferenceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 0 1
DocumentTypeCode cbc:DocumentTypeCode 0 1
DocumentType cbc:DocumentType 0 1
XPath cbc:XPath 0 unbounded
Attachment cac:Attachment 0 1
Collapse Derivation Tree:
