Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: RequestForQuotationLine
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:RequestForQuotationLineType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

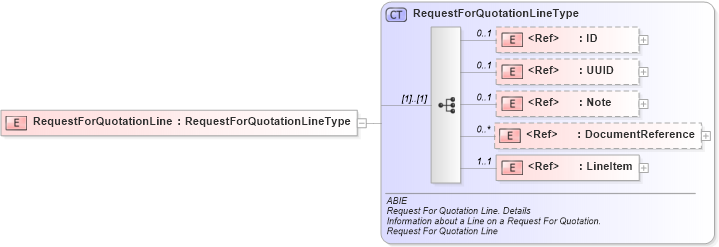

Collapse XSD Schema Diagram:
Drilldown into LineItem in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RequestForQuotationLineType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of RequestForQuotationLine in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="RequestForQuotationLine" type="RequestForQuotationLineType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
UUID cbc:UUID 0 1
Note cbc:Note 0 1
DocumentReference cac:DocumentReference 0 unbounded
LineItem cac:LineItem 1 1
Collapse Derivation Tree:
