Definition Type: ComplexType
Name: SignatureType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Signature. Details Information about signature. A placeholder for signature. Signature

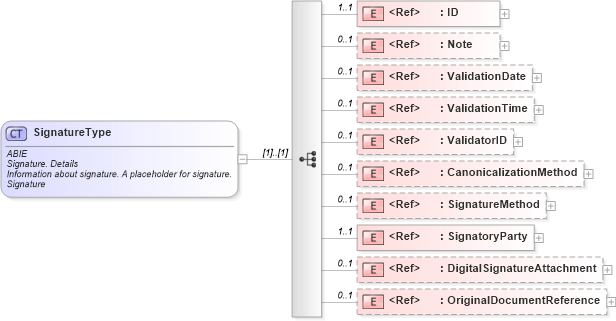

Collapse XSD Schema Diagram:
Drilldown into OriginalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DigitalSignatureAttachment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SignatoryParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SignatureMethod in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CanonicalizationMethod in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValidatorID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValidationTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ValidationDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of SignatureType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="SignatureType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Signature. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about signature. A placeholder for signature.</ccts:Definition>
                <ccts:ObjectClass>Signature</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Signature.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free form text about the signature or the circumstances where the signature has been used.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ValidationDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Validation Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>Specifies the date when the signature was approved.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTerm>Validation Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ValidationTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Validation Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>Specifies the time when the signature was approved.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTerm>Validation Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ValidatorID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Validator Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the organization, person, service or server that has validated the signature.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTerm>Validator Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CanonicalizationMethod" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Canonicalization Method. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The mathematical logic method used by the Signature.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTerm>Canonicalization Method</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SignatureMethod" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Signature Method. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The method of signature.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTerm>Signature Method</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SignatoryParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Signatory_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the signing Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Signatory</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DigitalSignatureAttachment" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Digital Signature_ Attachment. Attachment</ccts:DictionaryEntryName>
                        <ccts:Definition>Refers to the actual encoded signature (e.g., in XMLDSIG format).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Digital Signature</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Attachment</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Attachment</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OriginalDocumentReference" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Signature. Original_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>A reference to the actual document that the signature applies to. For evidentiary purposes, this may be the document image that the signatory party saw when applying their signature.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Signature</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Original</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
Note cbc:Note 0 1
ValidationDate cbc:ValidationDate 0 1
ValidationTime cbc:ValidationTime 0 1
ValidatorID cbc:ValidatorID 0 1
CanonicalizationMethod cbc:CanonicalizationMethod 0 1
SignatureMethod cbc:SignatureMethod 0 1
SignatoryParty cac:SignatoryParty 1 1
DigitalSignatureAttachment cac:DigitalSignatureAttachment 0 1
OriginalDocumentReference cac:OriginalDocumentReference 0 1
Collapse Derivation Tree:
Collapse References:
cac:Signature
