Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: SubstitutionStatusCodeType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:QualifiedDatatypes-2
Type: udt:CodeType
Containing Schema: UBL-QualifiedDatatypes-2.0.xsd
Abstract
Documentation:
Substitution Status_ Code. Type 2.0 The set of values that indicate the status of an OrderItem in relation to substitution, denoting an acceptable substitute in the Order, an original for which an alternative is offered in the Order Confirmation, or an original for which an actual replacement is advised in the Despatch Advice. Code Substitution Status

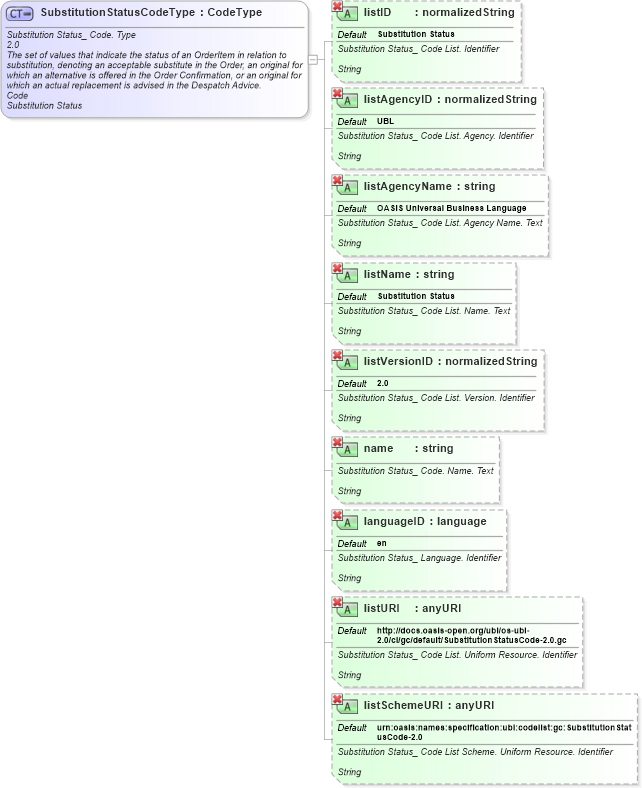

Collapse XSD Schema Diagram:
Drilldown into listSchemeURI in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listURI in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into languageID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into name in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listVersionID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listName in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listAgencyName in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listAgencyID in schema ubl-qualifieddatatypes-2_0_xsd Drilldown into listID in schema ubl-qualifieddatatypes-2_0_xsdXSD Diagram of SubstitutionStatusCodeType in schema ubl-qualifieddatatypes-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="SubstitutionStatusCodeType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:DictionaryEntryName>Substitution Status_ Code. Type</ccts:DictionaryEntryName>
                <ccts:Version>2.0</ccts:Version>
                <ccts:Definition>The set of values that indicate the status of an OrderItem in relation to substitution, denoting an acceptable substitute in the Order, an original for which an alternative is offered in the Order Confirmation, or an original for which an actual replacement is advised in the Despatch Advice.</ccts:Definition>
                <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                <ccts:QualifierTerm>Substitution Status</ccts:QualifierTerm>
                <ccts:UniqueID>
                </ccts:UniqueID>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="udt:CodeType">
            <xsd:attribute name="listID" type="xsd:normalizedString" default="Substitution Status" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Code List. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listAgencyID" type="xsd:normalizedString" default="UBL" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Code List. Agency. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listAgencyName" type="xsd:string" default="OASIS Universal Business Language" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Code List. Agency Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listName" type="xsd:string" default="Substitution Status" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Code List. Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listVersionID" type="xsd:normalizedString" default="2.0" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Code List. Version. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="name" type="xsd:string" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Code. Name. Text</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="languageID" type="xsd:language" default="en" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Language. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listURI" type="xsd:anyURI" default="http://docs.oasis-open.org/ubl/os-ubl-2.0/cl/gc/default/SubstitutionStatusCode-2.0.gc" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Code List. Uniform Resource. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
            <xsd:attribute name="listSchemeURI" type="xsd:anyURI" default="urn:oasis:names:specification:ubl:codelist:gc:SubstitutionStatusCode-2.0" use="optional">
                <xsd:annotation>
                    <xsd:documentation>
                        <ccts:Name xmlns:ccts="urn:un:unece:uncefact:documentation:2">Substitution Status_ Code List Scheme. Uniform Resource. Identifier</ccts:Name>
                        <ccts:Definition xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        </ccts:Definition>
                        <ccts:PrimitiveType xmlns:ccts="urn:un:unece:uncefact:documentation:2">String</ccts:PrimitiveType>
                    </xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID qdt:listID Substitution Status Optional
listAgencyID qdt:listAgencyID UBL Optional
listAgencyName qdt:listAgencyName OASIS Universal Business Language Optional
listName qdt:listName Substitution Status Optional
listVersionID qdt:listVersionID 2.0 Optional
name qdt:name Optional
languageID qdt:languageID en Optional
listURI qdt:listURI http://docs.oasis-open.org/ubl/os-ubl-2.0/cl/gc/default/SubstitutionStatusCode-2.0.gc Optional
listSchemeURI qdt:listSchemeURI urn:oasis:names:specification:ubl:codelist:gc:SubstitutionStatusCode-2.0 Optional
Collapse Derivation Tree:
Collapse References:
cbc:SubstitutionStatusCodeType
