Definition Type: ComplexType
Name: SupplierPartyType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Supplier Party. Details Information about the Supplier Party. Supplier Party

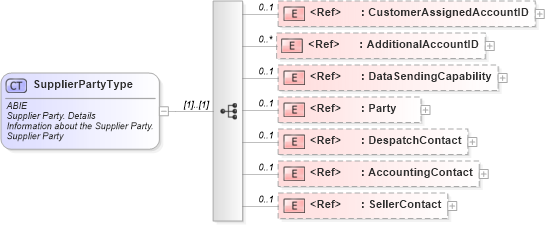

Collapse XSD Schema Diagram:
Drilldown into SellerContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchContact in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Party in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DataSendingCapability in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AdditionalAccountID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomerAssignedAccountID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of SupplierPartyType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="SupplierPartyType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Supplier Party. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about the Supplier Party.</ccts:Definition>
                <ccts:ObjectClass>Supplier Party</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:CustomerAssignedAccountID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Supplier Party. Customer Assigned_ Account Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The customer's internal identifier for the supplier.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Supplier Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Customer Assigned</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Account Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AdditionalAccountID" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Supplier Party. Additional_ Account Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The customer's internal identifier for the supplier.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Supplier Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Account Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DataSendingCapability" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Supplier Party. Data Sending Capability. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Capability to send invoice data via the purchase card provider (VISA/MasterCard/American Express).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Supplier Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Data Sending Capability</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>The customer's internal identifier for the supplier.</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Party" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Supplier Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Party.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Supplier Party</ccts:ObjectClass>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DespatchContact" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Supplier Party. Despatch_ Contact. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Despatch Contact.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Supplier Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Despatch</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AccountingContact" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Supplier Party. Accounting_ Contact. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Supplier Accounting Contact.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Supplier Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Accounting</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SellerContact" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Supplier Party. Seller_ Contact. Contact</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Seller.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Supplier Party</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Seller</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Contact</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Contact</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustomerAssignedAccountID cbc:CustomerAssignedAccountID 0 1
AdditionalAccountID cbc:AdditionalAccountID 0 unbounded
DataSendingCapability cbc:DataSendingCapability 0 1
Party cac:Party 0 1
DespatchContact cac:DespatchContact 0 1
AccountingContact cac:AccountingContact 0 1
SellerContact cac:SellerContact 0 1
Collapse Derivation Tree:
Collapse References:
cac:AccountingSupplierParty, cac:DespatchSupplierParty, cac:SellerSupplierParty, cac:SupplierParty
