Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: TaxSubtotal
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:TaxSubtotalType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

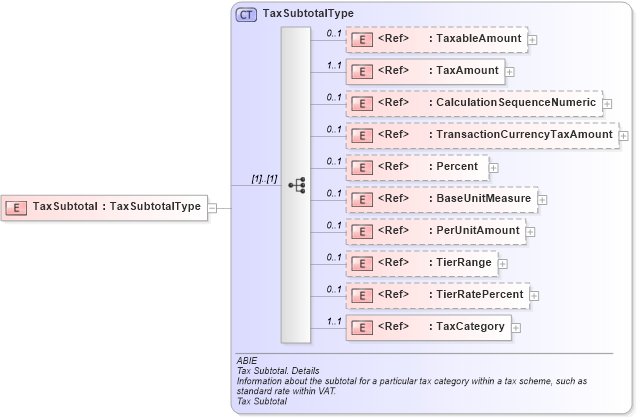

Collapse XSD Schema Diagram:
Drilldown into TaxCategory in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TierRatePercent in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TierRange in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PerUnitAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BaseUnitMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Percent in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransactionCurrencyTaxAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CalculationSequenceNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxableAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxSubtotalType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of TaxSubtotal in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="TaxSubtotal" type="TaxSubtotalType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TaxableAmount cbc:TaxableAmount 0 1
TaxAmount cbc:TaxAmount 1 1
CalculationSequenceNumeric cbc:CalculationSequenceNumeric 0 1
TransactionCurrencyTaxAmount cbc:TransactionCurrencyTaxAmount 0 1
Percent cbc:Percent 0 1
BaseUnitMeasure cbc:BaseUnitMeasure 0 1
PerUnitAmount cbc:PerUnitAmount 0 1
TierRange cbc:TierRange 0 1
TierRatePercent cbc:TierRatePercent 0 1
TaxCategory cac:TaxCategory 1 1
Collapse Derivation Tree:
