Definition Type: Element
Name: TransportationService
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:TransportationServiceType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

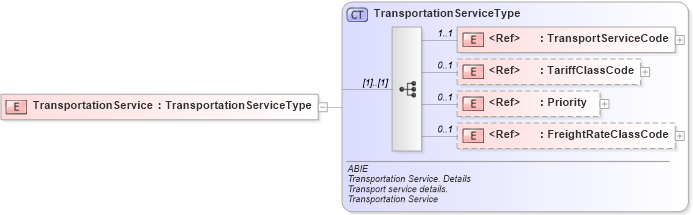

Collapse XSD Schema Diagram:
Drilldown into FreightRateClassCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Priority in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TariffClassCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransportServiceCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransportationServiceType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of TransportationService in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="TransportationService" type="TransportationServiceType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportServiceCode cbc:TransportServiceCode 1 1
TariffClassCode cbc:TariffClassCode 0 1
Priority cbc:Priority 0 1
FreightRateClassCode cbc:FreightRateClassCode 0 1
Collapse Derivation Tree:
