Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: TransportContract
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:ContractType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

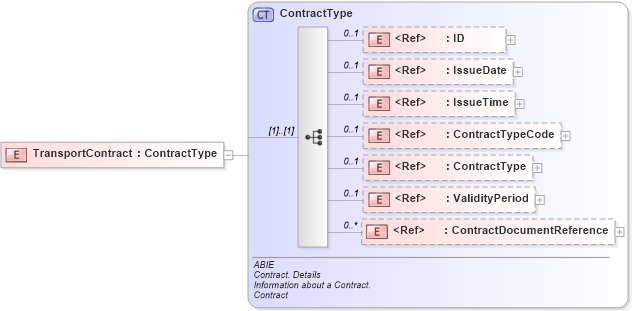

Collapse XSD Schema Diagram:
Drilldown into ContractDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ValidityPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContractType in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ContractTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ContractType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of TransportContract in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="TransportContract" type="ContractType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
IssueDate cbc:IssueDate 0 1
IssueTime cbc:IssueTime 0 1
ContractTypeCode cbc:ContractTypeCode 0 1
ContractType cbc:ContractType 0 1
ValidityPeriod cac:ValidityPeriod 0 1
ContractDocumentReference cac:ContractDocumentReference 0 unbounded
Collapse Derivation Tree:
