Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: TransportEquipmentType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Transport Equipment. Details Information about Transport Equipment; a piece of equipment used to transport goods. Transport Equipment Shipping Container, Sea Container, Rail Wagon, Pallet, Trailer, Unit Load Device, ULD

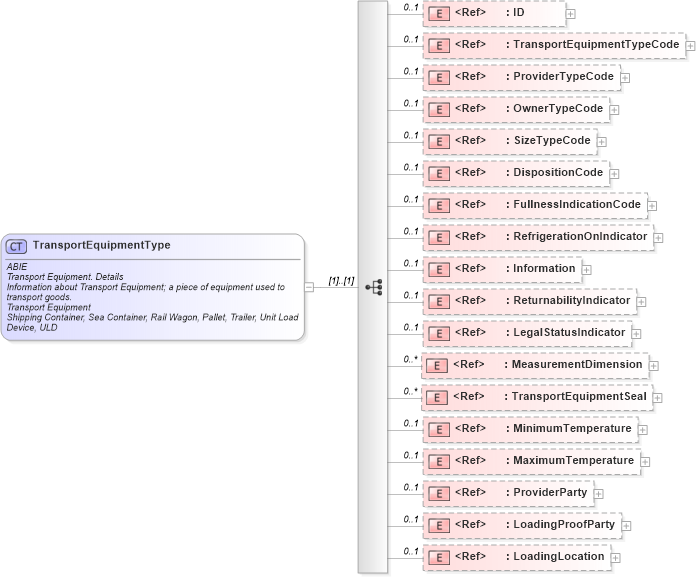

Collapse XSD Schema Diagram:
Drilldown into LoadingLocation in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LoadingProofParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ProviderParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MaximumTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MinimumTemperature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TransportEquipmentSeal in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MeasurementDimension in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LegalStatusIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ReturnabilityIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Information in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RefrigerationOnIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into FullnessIndicationCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DispositionCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SizeTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OwnerTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProviderTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TransportEquipmentTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of TransportEquipmentType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TransportEquipmentType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Transport Equipment. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about Transport Equipment; a piece of equipment used to transport goods.</ccts:Definition>
                <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>Shipping Container, Sea Container, Rail Wagon, Pallet, Trailer, Unit Load Device, ULD</ccts:AlternativeBusinessTerms>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the transport equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>"OCLU 1234567"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TransportEquipmentTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Transport Equipment Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the type of provider of the transport equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Equipment Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Transport Equipment Type_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ProviderTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Provider Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the type of provider of the transport equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Provider Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:OwnerTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Owner Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the type of owner of a piece of transport equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Owner Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SizeTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Size Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The size and type of a piece of transport equipment, expressed as a code. When the transport equipment is a shipping container, it is recommended to use ContainerSizeTypeCode for validation.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Size Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Container Size Type Code</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DispositionCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Disposition Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The current disposition of the transport equipment, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Disposition Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Status</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:FullnessIndicationCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Fullness Indication Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>A code indicating whether a piece of transport equipment is full, partially full, or empty.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Fullness Indication Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:RefrigerationOnIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Refrigeration On_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the transport equipment's refrigeration is on (true) or off (false).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Refrigeration On</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Information" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Information. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Additional information about the transport equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Information</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ReturnabilityIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Returnability_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether a particular item of transport equipment is returnable.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Returnability</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LegalStatusIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Legal Status_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Legal status of the transport equipment with respect to the Container Convention code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Legal Status</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MeasurementDimension" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Measurement_ Dimension. Dimension</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Dimension.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Measurement</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Dimension</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Dimension</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TransportEquipmentSeal" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Transport Equipment Seal</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Transport Equipment Seal.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transport Equipment Seal</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Transport Equipment Seal</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MinimumTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Minimum_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>The minimum required operating temperature for the container (reefer).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Minimum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MaximumTemperature" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Maximum_ Temperature. Temperature</ccts:DictionaryEntryName>
                        <ccts:Definition>The maximum required operating temperature for the container (reefer).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Maximum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Temperature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Temperature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ProviderParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Provider_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>The party that provides the transport equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Provider</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="LoadingProofParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Loading Proof_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>The authorized party responsible for certifying that the goods were loaded into the transport equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Loading Proof</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="LoadingLocation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Equipment. Loading_ Location. Location</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the location where the goods are loaded into the transport equipment.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Equipment</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Loading</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Location</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Location</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 0 1
TransportEquipmentTypeCode cbc:TransportEquipmentTypeCode 0 1
ProviderTypeCode cbc:ProviderTypeCode 0 1
OwnerTypeCode cbc:OwnerTypeCode 0 1
SizeTypeCode cbc:SizeTypeCode 0 1
DispositionCode cbc:DispositionCode 0 1
FullnessIndicationCode cbc:FullnessIndicationCode 0 1
RefrigerationOnIndicator cbc:RefrigerationOnIndicator 0 1
Information cbc:Information 0 1
ReturnabilityIndicator cbc:ReturnabilityIndicator 0 1
LegalStatusIndicator cbc:LegalStatusIndicator 0 1
MeasurementDimension cac:MeasurementDimension 0 unbounded
TransportEquipmentSeal cac:TransportEquipmentSeal 0 unbounded
MinimumTemperature cac:MinimumTemperature 0 1
MaximumTemperature cac:MaximumTemperature 0 1
ProviderParty cac:ProviderParty 0 1
LoadingProofParty cac:LoadingProofParty 0 1
LoadingLocation cac:LoadingLocation 0 1
Collapse Derivation Tree:
Collapse References:
cac:TransportEquipment
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
