Definition Type: ComplexType
Name: TransportMeansType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Transport Means. Details The particular vehicle used for the transport of goods or persons. Transport Means Conveyance

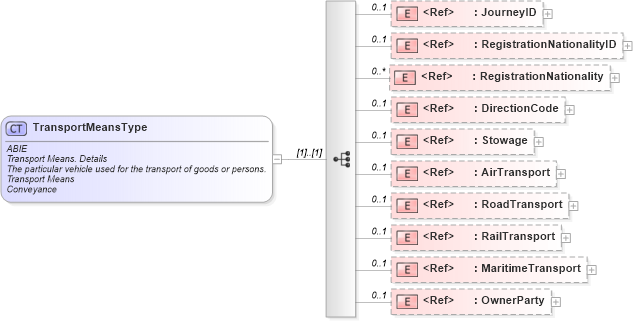

Collapse XSD Schema Diagram:
Drilldown into OwnerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into MaritimeTransport in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RailTransport in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RoadTransport in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AirTransport in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Stowage in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DirectionCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RegistrationNationality in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into RegistrationNationalityID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into JourneyID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of TransportMeansType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="TransportMeansType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Transport Means. Details</ccts:DictionaryEntryName>
                <ccts:Definition>The particular vehicle used for the transport of goods or persons.</ccts:Definition>
                <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>Conveyance</ccts:AlternativeBusinessTerms>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:JourneyID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Journey Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier assigned to a regularly scheduled service of a means of transport.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Journey Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Voyage Number, Scheduled Conveyance Identifier (WCO ID 205), Flight Number</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:RegistrationNationalityID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Registration_ Nationality Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Formal identification of the country in which a means of transport is registered.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Registration</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Nationality Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Nationality of Means of Transport (WCO 175, 178 and 179)</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"LIB"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:RegistrationNationality" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Registration_ Nationality. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Name of the country in which a means of transport is registered.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Registration</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Nationality</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Flag of Vessel, Nationality of Ship</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>Liberia</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DirectionCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Direction Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The direction of the transport means.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Direction Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Transit Direction</ccts:AlternativeBusinessTerms>
                        <ccts:Examples>"North","East"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Stowage" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Stowage</ccts:DictionaryEntryName>
                        <ccts:Definition>Association to a location on board a means of transport where specified goods or transport equipment have been or are to be stowed.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Stowage</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Stowage</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AirTransport" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Air Transport</ccts:DictionaryEntryName>
                        <ccts:Definition>Association to identify an aircraft.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Air Transport</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Air Transport</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="RoadTransport" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Road Transport</ccts:DictionaryEntryName>
                        <ccts:Definition>Association to identify a road vehicle.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Road Transport</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Road Transport</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="RailTransport" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Rail Transport</ccts:DictionaryEntryName>
                        <ccts:Definition>Association to identify a train.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Rail Transport</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Rail Transport</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="MaritimeTransport" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Maritime Transport</ccts:DictionaryEntryName>
                        <ccts:Definition>Association to identify a ship.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTerm>Maritime Transport</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Maritime Transport</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OwnerParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Transport Means. Owner_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>Association to the party owning the means of transport.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Transport Means</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Owner</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JourneyID cbc:JourneyID 0 1
RegistrationNationalityID cbc:RegistrationNationalityID 0 1
RegistrationNationality cbc:RegistrationNationality 0 unbounded
DirectionCode cbc:DirectionCode 0 1
Stowage cac:Stowage 0 1
AirTransport cac:AirTransport 0 1
RoadTransport cac:RoadTransport 0 1
RailTransport cac:RailTransport 0 1
MaritimeTransport cac:MaritimeTransport 0 1
OwnerParty cac:OwnerParty 0 1
Collapse Derivation Tree:
Collapse References:
cac:TransportMeans
