Definition Type: Element
Name: Message
Namespace: http://docs.oasis-open.org/wsdm/2004/12/mows/wsdm-mows.xsd
Type: mows-xs:MessageContentType
Containing Schema: wsdm-mows.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

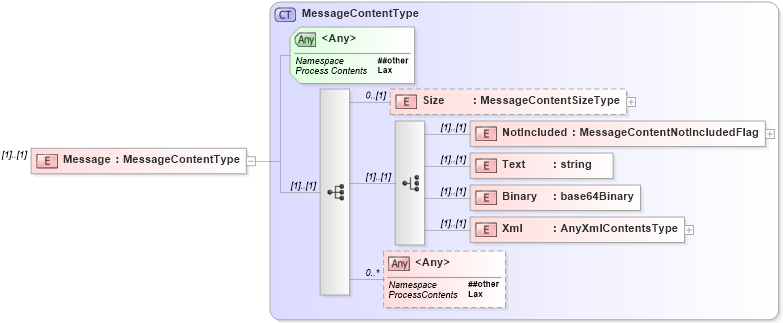

Collapse XSD Schema Diagram:
Drilldown into Xml in schema wsdm-mows_xsd Drilldown into Binary in schema wsdm-mows_xsd Drilldown into Text in schema wsdm-mows_xsd Drilldown into NotIncluded in schema wsdm-mows_xsd Drilldown into Size in schema wsdm-mows_xsd Drilldown into MessageContentType in schema wsdm-mows_xsdXSD Diagram of Message in schema wsdm-mows_xsd (OASIS Web Services Distributed Management (WSDM) TC)
Collapse XSD Schema Code:
<xs:element name="Message" type="mows-xs:MessageContentType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Size mows-xs:Size 0 (1)
NotIncluded mows-xs:NotIncluded (1) (1)
Text mows-xs:Text (1) (1)
Binary mows-xs:Binary (1) (1)
Xml mows-xs:Xml (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
