Documentation for OASIS Web Services Distributed Management (WSDM) TC
Definition Type: Element
Name: ReporterComponent
Namespace: http://docs.oasis-open.org/wsdm/2004/12/muws/wsdm-muws-part1.xsd
Type: muws-xs1:ComponentType
Containing Schema: wsdm-muws-part1.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

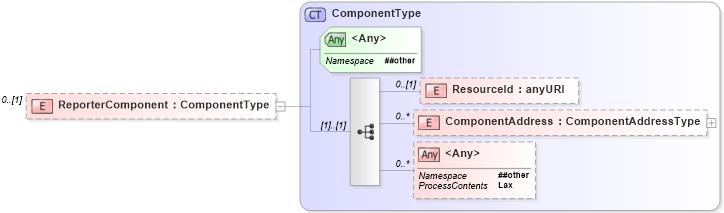

Collapse XSD Schema Diagram:
Drilldown into ComponentAddress in schema wsdm-muws-part1_xsd Drilldown into ResourceId in schema wsdm-muws-part1_xsd Drilldown into ComponentType in schema wsdm-muws-part1_xsdXSD Diagram of ReporterComponent in schema wsdm-muws-part1_xsd (OASIS Web Services Distributed Management (WSDM) TC)
Collapse XSD Schema Code:
<xs:element name="ReporterComponent" type="muws-p1-xs:ComponentType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ResourceId muws-xs1:ResourceId 0 (1)
ComponentAddress muws-xs1:ComponentAddress 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
