Documentation for OASIS Web Services Security (WSS) TC
Definition Type: Element
Name: EncryptedHeader
Namespace: http://docs.oasis-open.org/wss/oasis-wss-wssecurity-secext-1.1.xsd
Type: tns:EncryptedHeaderType
Containing Schema: oasis-wss-wssecurity-secext-1.1.xsd
Abstract
Collapse XSD Schema Diagram:

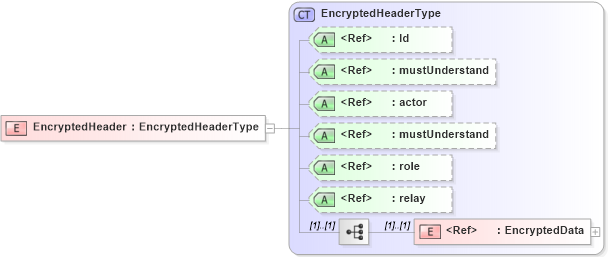

Drilldown into EncryptedData in schema xenc-schema_xsd Drilldown into relay in schema w3_org-200305-soap-envelope_xsd Drilldown into role in schema w3_org-200305-soap-envelope_xsd Drilldown into mustUnderstand in schema w3_org-200305-soap-envelope_xsd Drilldown into actor in schema schemas_xmlsoap_org-soap-envelope_xsd Drilldown into mustUnderstand in schema schemas_xmlsoap_org-soap-envelope_xsd Drilldown into Id in schema oasis-200401-wss-wssecurity-utility-1_0_xsd Drilldown into EncryptedHeaderType in schema oasis-wss-wssecurity-secext-1_1_xsdXSD Diagram of EncryptedHeader in schema oasis-wss-wssecurity-secext-1_1_xsd (OASIS Web Services Security (WSS) TC)
Collapse XSD Schema Code:
<xs:element name="EncryptedHeader" type="tns:EncryptedHeaderType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EncryptedData xenc:EncryptedData (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Id wsu:Id Optional
mustUnderstand soap11:mustUnderstand Optional
actor soap11:actor Optional
mustUnderstand soap12:mustUnderstand Optional
role soap12:role Optional
relay soap12:relay Optional
Collapse Derivation Tree:
Documentation for OASIS Web Services Security (WSS) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
