Documentation for OASIS Web Services Security (WSS) TC
Definition Type: ComplexType
Name: Fault
Namespace: http://schemas.xmlsoap.org/soap/envelope/
Containing Schema: schemas.xmlsoap.org-soap-envelope.xsd
Abstract
Documentation:
Fault reporting structure

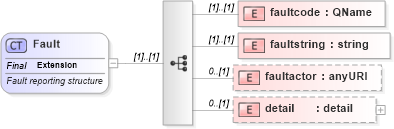

Collapse XSD Schema Diagram:
Drilldown into detail in schema schemas_xmlsoap_org-soap-envelope_xsd Drilldown into faultactor in schema schemas_xmlsoap_org-soap-envelope_xsd Drilldown into faultstring in schema schemas_xmlsoap_org-soap-envelope_xsd Drilldown into faultcode in schema schemas_xmlsoap_org-soap-envelope_xsdXSD Diagram of Fault in schema schemas_xmlsoap_org-soap-envelope_xsd (OASIS Web Services Security (WSS) TC)
Collapse XSD Schema Code:
<xs:complexType name="Fault" final="extension">
    <xs:annotation>
        <xs:documentation>
	    Fault reporting structure
	  </xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="faultcode" type="xs:QName" />
        <xs:element name="faultstring" type="xs:string" />
        <xs:element minOccurs="0" name="faultactor" type="xs:anyURI" />
        <xs:element minOccurs="0" name="detail" type="tns:detail" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
faultcode soap11:faultcode (1) (1)
faultstring soap11:faultstring (1) (1)
faultactor soap11:faultactor 0 (1)
detail soap11:detail 0 (1)
Collapse Derivation Tree:
Collapse References:
soap11:Fault
