Documentation for OASIS Web Services Security (WSS) TC
Definition Type: Element
Name: Reference
Namespace: http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd
Type: wsse:ReferenceType
Containing Schema: oasis-200401-wss-wssecurity-secext-1.0.xsd
Abstract
Documentation:
This element defines a security token reference

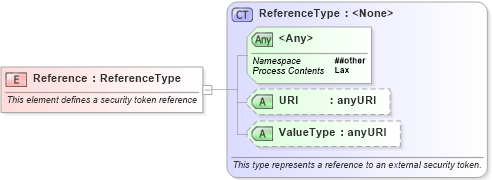

Collapse XSD Schema Diagram:
Drilldown into ValueType in schema oasis-200401-wss-wssecurity-secext-1_0_xsd Drilldown into URI in schema oasis-200401-wss-wssecurity-secext-1_0_xsd Drilldown into ReferenceType in schema oasis-200401-wss-wssecurity-secext-1_0_xsdXSD Diagram of Reference in schema oasis-200401-wss-wssecurity-secext-1_0_xsd (OASIS Web Services Security (WSS) TC)
Collapse XSD Schema Code:
<xsd:element name="Reference" type="ReferenceType">
    <xsd:annotation>
        <xsd:documentation>This element defines a security token reference</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
URI wsse:URI (Optional)
ValueType wsse:ValueType (Optional)
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
