Definition Type: AttributeGroup
Name: AG_ConstraintAttributes
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Collapse XSD Schema Diagram:

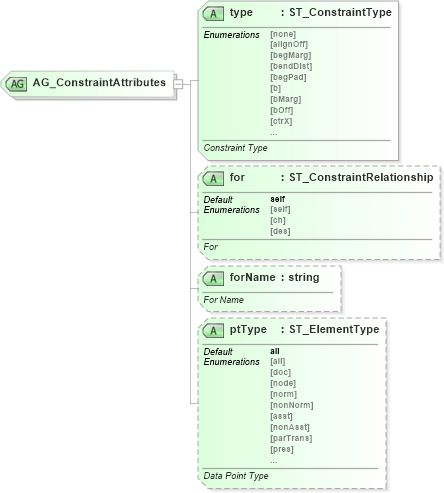

Drilldown into ptType in schema dml-diagramdefinition_xsd Drilldown into forName in schema dml-diagramdefinition_xsd Drilldown into for in schema dml-diagramdefinition_xsd Drilldown into type in schema dml-diagramdefinition_xsdXSD Diagram of AG_ConstraintAttributes in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:attributeGroup name="AG_ConstraintAttributes">
    <xsd:attribute name="type" type="ST_ConstraintType" use="required">
        <xsd:annotation>
            <xsd:documentation>Constraint Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="for" type="ST_ConstraintRelationship" use="optional" default="self">
        <xsd:annotation>
            <xsd:documentation>For</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="forName" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>For Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ptType" type="ST_ElementType" use="optional" default="all">
        <xsd:annotation>
            <xsd:documentation>Data Point Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
type nsC:type Required
for nsC:for self Optional
forName nsC:forName Optional
ptType nsC:ptType all Optional
