Definition Type: AttributeGroup
Name: AG_ConstraintRefAttributes
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Collapse XSD Schema Diagram:

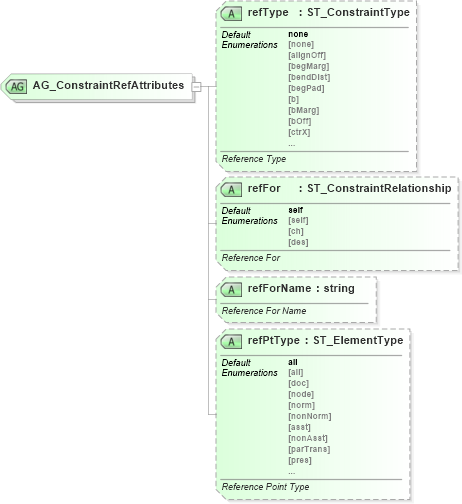

Drilldown into refPtType in schema dml-diagramdefinition_xsd Drilldown into refForName in schema dml-diagramdefinition_xsd Drilldown into refFor in schema dml-diagramdefinition_xsd Drilldown into refType in schema dml-diagramdefinition_xsdXSD Diagram of AG_ConstraintRefAttributes in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:attributeGroup name="AG_ConstraintRefAttributes">
    <xsd:attribute name="refType" type="ST_ConstraintType" use="optional" default="none">
        <xsd:annotation>
            <xsd:documentation>Reference Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="refFor" type="ST_ConstraintRelationship" use="optional" default="self">
        <xsd:annotation>
            <xsd:documentation>Reference For</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="refForName" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Reference For Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="refPtType" type="ST_ElementType" use="optional" default="all">
        <xsd:annotation>
            <xsd:documentation>Reference Point Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
refType nsC:refType none Optional
refFor nsC:refFor self Optional
refForName nsC:refForName Optional
refPtType nsC:refPtType all Optional
