Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: AttributeGroup
Name: AG_CoreAttributes
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml-main.xsd

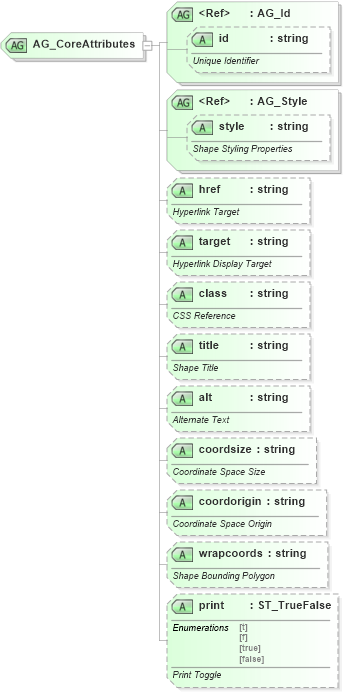

Collapse XSD Schema Diagram:
Drilldown into print in schema vml-main_xsd Drilldown into wrapcoords in schema vml-main_xsd Drilldown into coordorigin in schema vml-main_xsd Drilldown into coordsize in schema vml-main_xsd Drilldown into alt in schema vml-main_xsd Drilldown into title in schema vml-main_xsd Drilldown into class in schema vml-main_xsd Drilldown into target in schema vml-main_xsd Drilldown into href in schema vml-main_xsd Drilldown into style in schema vml-main_xsd Drilldown into AG_Style in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsdXSD Diagram of AG_CoreAttributes in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:attributeGroup name="AG_CoreAttributes">
    <xsd:attributeGroup ref="AG_Id" />
    <xsd:attributeGroup ref="AG_Style" />
    <xsd:attribute name="href" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Hyperlink Target</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="target" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Hyperlink Display Target</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="class" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>CSS Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="title" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Title</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="alt" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Alternate Text</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="coordsize" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Coordinate Space Size</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="coordorigin" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Coordinate Space Origin</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="wrapcoords" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Bounding Polygon</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="print" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Print Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
style v:style Optional
href v:href Optional
target v:target Optional
class v:class Optional
title v:title Optional
alt v:alt Optional
coordsize v:coordsize Optional
coordorigin v:coordorigin Optional
wrapcoords v:wrapcoords Optional
print v:print Optional
