Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: AttributeGroup
Name: AG_IteratorAttributes
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd

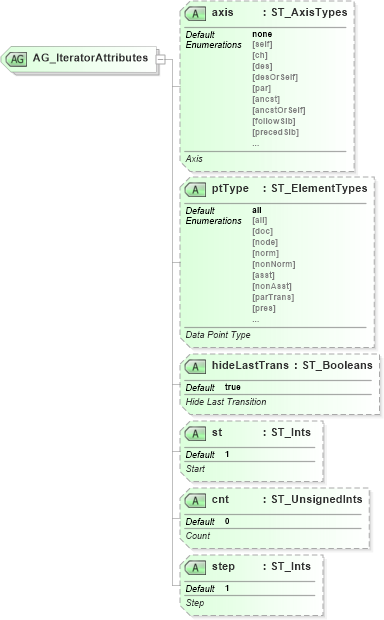

Collapse XSD Schema Diagram:
Drilldown into step in schema dml-diagramdefinition_xsd Drilldown into cnt in schema dml-diagramdefinition_xsd Drilldown into st in schema dml-diagramdefinition_xsd Drilldown into hideLastTrans in schema dml-diagramdefinition_xsd Drilldown into ptType in schema dml-diagramdefinition_xsd Drilldown into axis in schema dml-diagramdefinition_xsdXSD Diagram of AG_IteratorAttributes in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:attributeGroup name="AG_IteratorAttributes">
    <xsd:attribute name="axis" type="ST_AxisTypes" use="optional" default="none">
        <xsd:annotation>
            <xsd:documentation>Axis</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ptType" type="ST_ElementTypes" use="optional" default="all">
        <xsd:annotation>
            <xsd:documentation>Data Point Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hideLastTrans" type="ST_Booleans" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Hide Last Transition</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="st" type="ST_Ints" use="optional" default="1">
        <xsd:annotation>
            <xsd:documentation>Start</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="cnt" type="ST_UnsignedInts" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="step" type="ST_Ints" use="optional" default="1">
        <xsd:annotation>
            <xsd:documentation>Step</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
axis nsC:axis none Optional
ptType nsC:ptType all Optional
hideLastTrans nsC:hideLastTrans true Optional
st nsC:st 1 Optional
cnt nsC:cnt 0 Optional
step nsC:step 1 Optional
