Definition Type: AttributeGroup
Name: AG_ShapeAttributes
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml-main.xsd

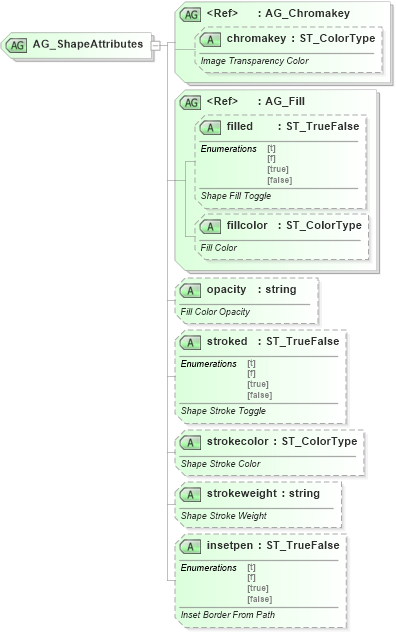

Collapse XSD Schema Diagram:
Drilldown into insetpen in schema vml-main_xsd Drilldown into strokeweight in schema vml-main_xsd Drilldown into strokecolor in schema vml-main_xsd Drilldown into stroked in schema vml-main_xsd Drilldown into opacity in schema vml-main_xsd Drilldown into fillcolor in schema vml-main_xsd Drilldown into filled in schema vml-main_xsd Drilldown into AG_Fill in schema vml-main_xsd Drilldown into chromakey in schema vml-main_xsd Drilldown into AG_Chromakey in schema vml-main_xsdXSD Diagram of AG_ShapeAttributes in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:attributeGroup name="AG_ShapeAttributes">
    <xsd:attributeGroup ref="AG_Chromakey" />
    <xsd:attributeGroup ref="AG_Fill" />
    <xsd:attribute name="opacity" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Fill Color Opacity</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="stroked" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Stroke Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="strokecolor" type="ST_ColorType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Stroke Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="strokeweight" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Stroke Weight</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="insetpen" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Inset Border From Path</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
chromakey v:chromakey Optional
filled v:filled Optional
fillcolor v:fillcolor Optional
opacity v:opacity Optional
stroked v:stroked Optional
strokecolor v:strokecolor Optional
strokeweight v:strokeweight Optional
insetpen v:insetpen Optional
